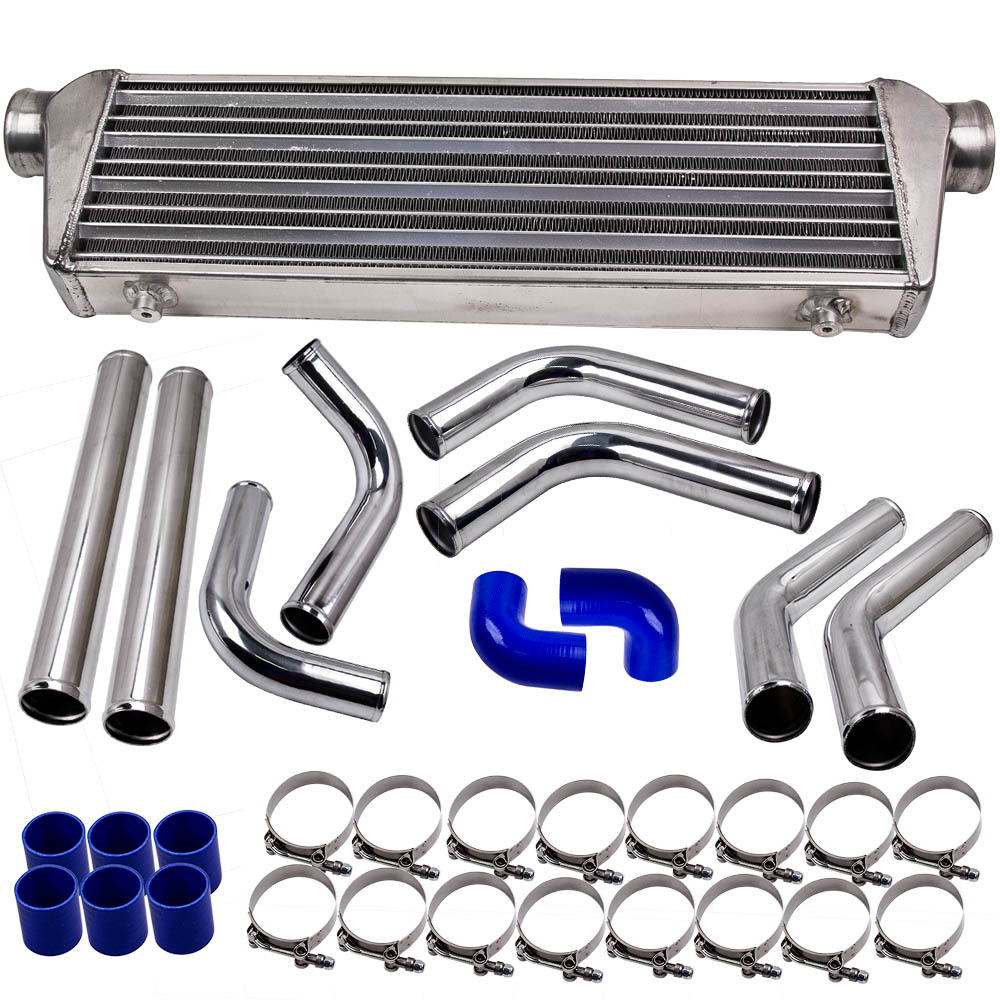

Universal Turbo Intercooler 27x7x2.5Aluminum Pipe Piping Hose Pipes Kit

Package Includes:

1 x Intercooler

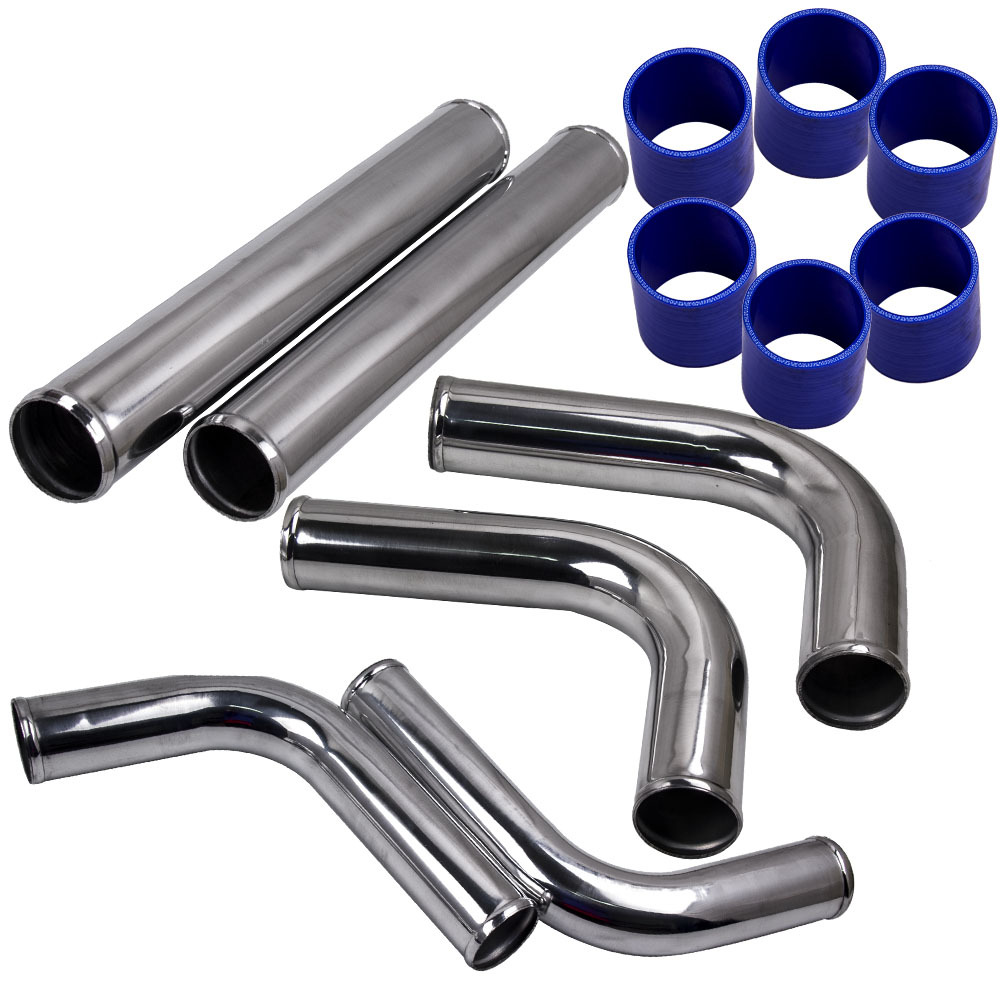

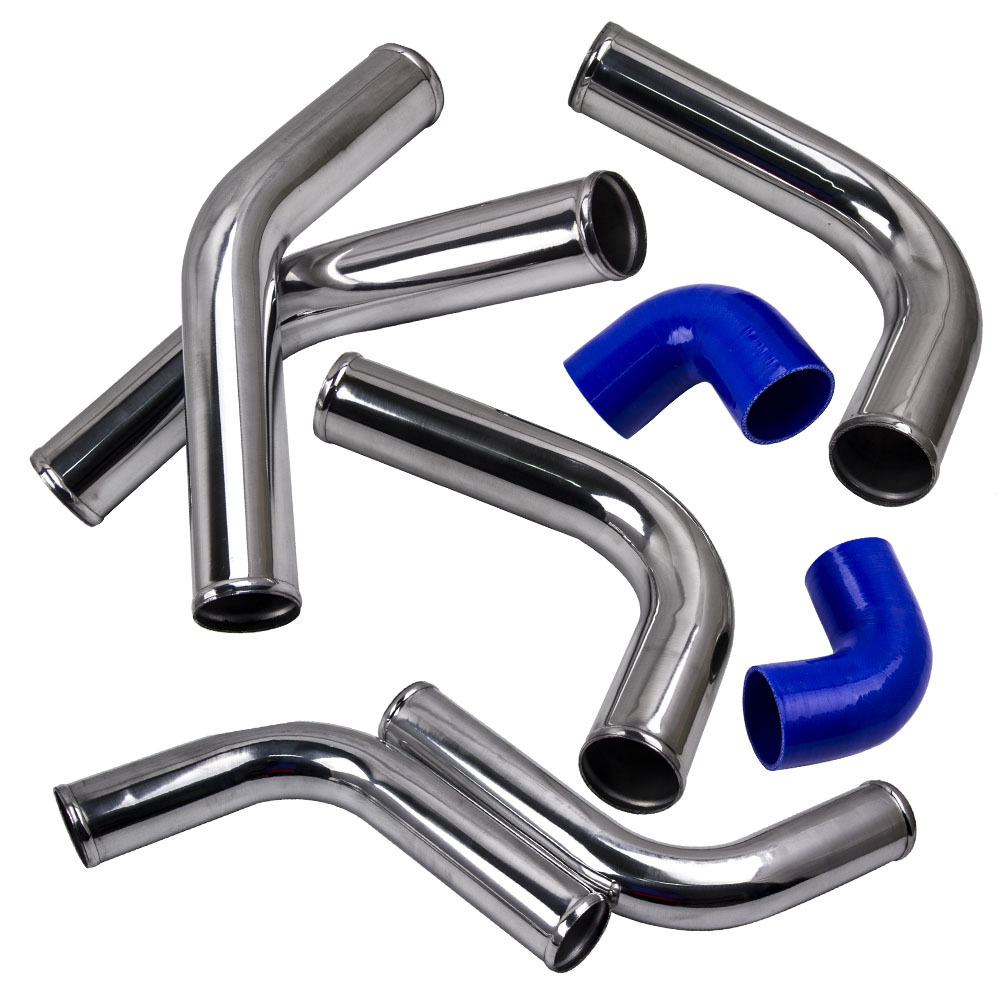

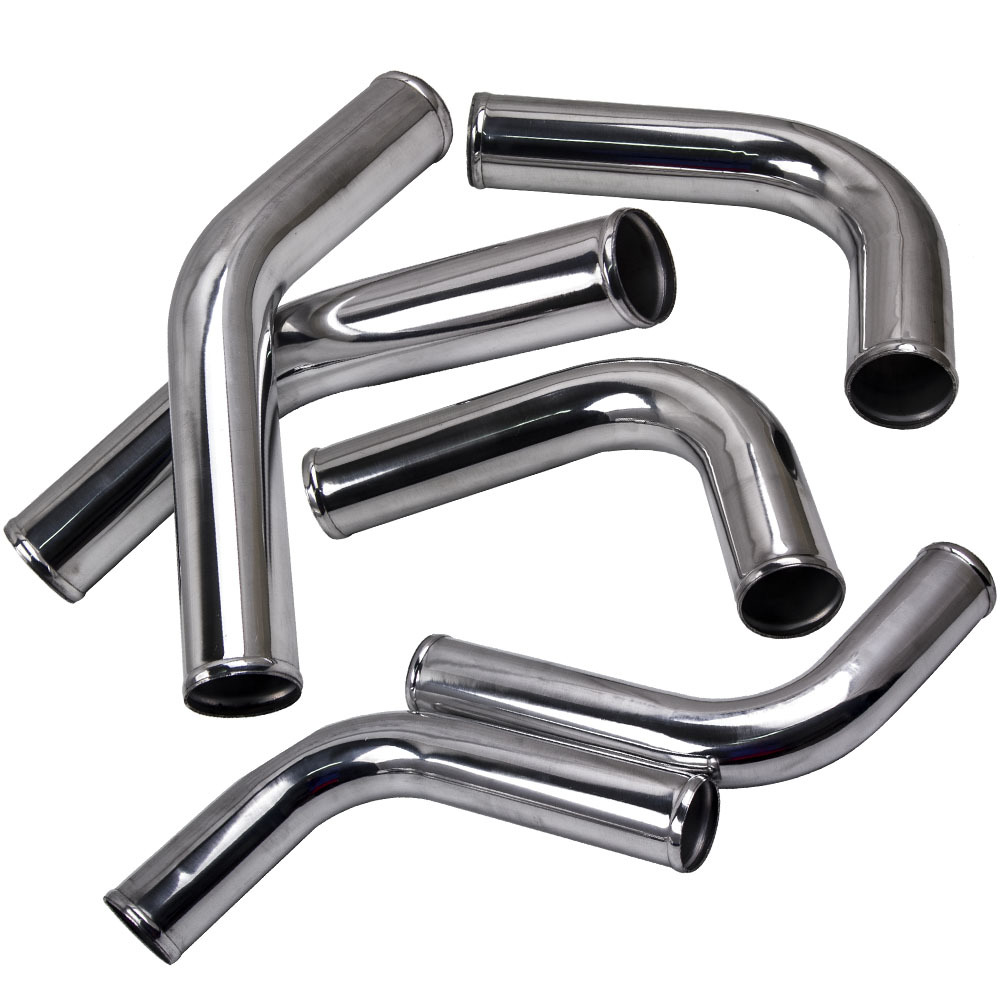

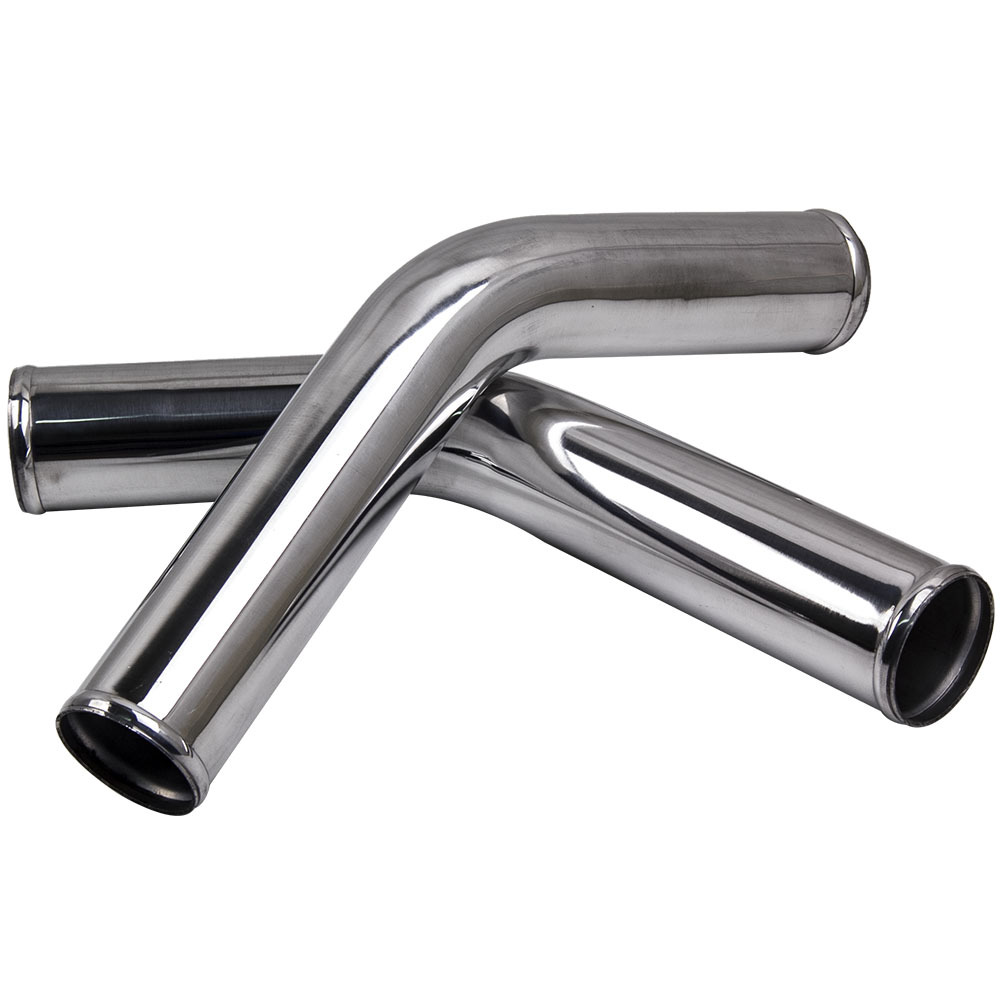

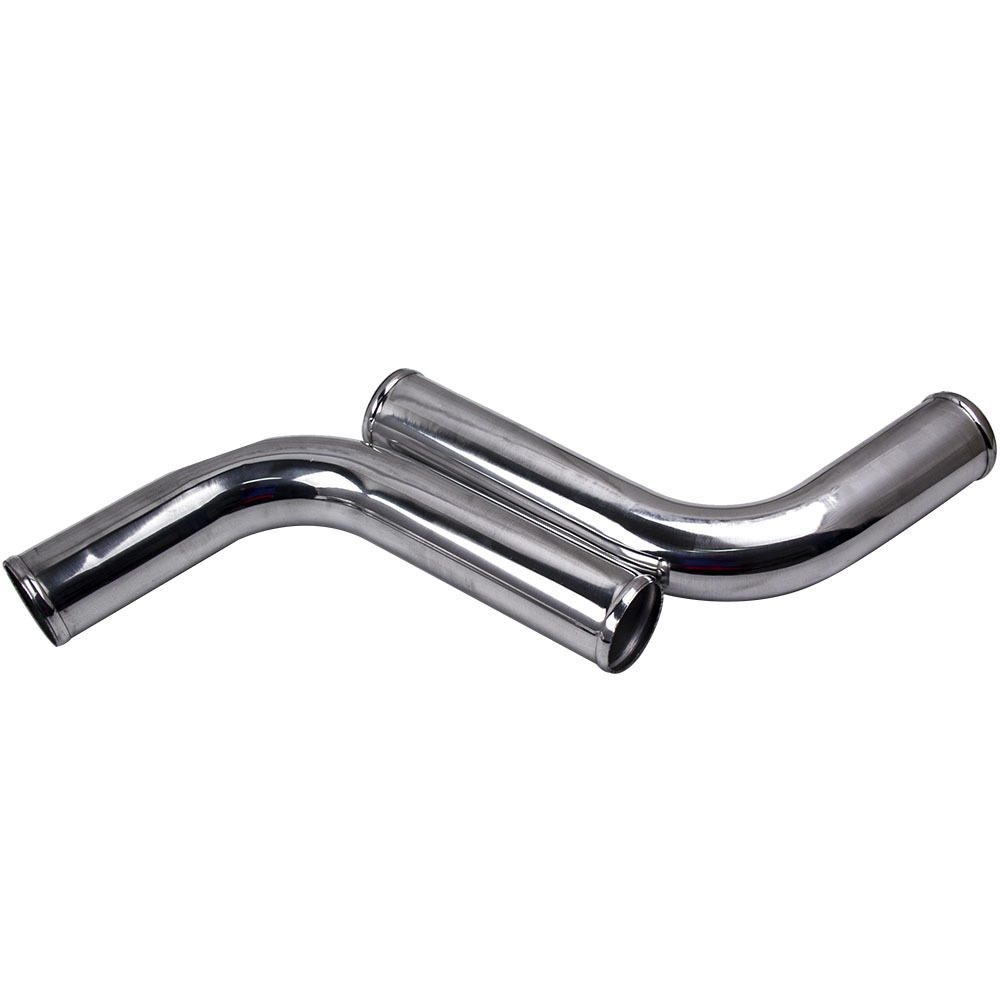

2 x 45°Aluminum Pipe
2 x 75°Aluminum Pipe
2 x 90°Aluminum Pipe
2 x Straight Aluminum Pipe
6 x 2.5" Straight Silicone Hose (Blue)
2 x 2.5" 90 Degree Hose (Blue)

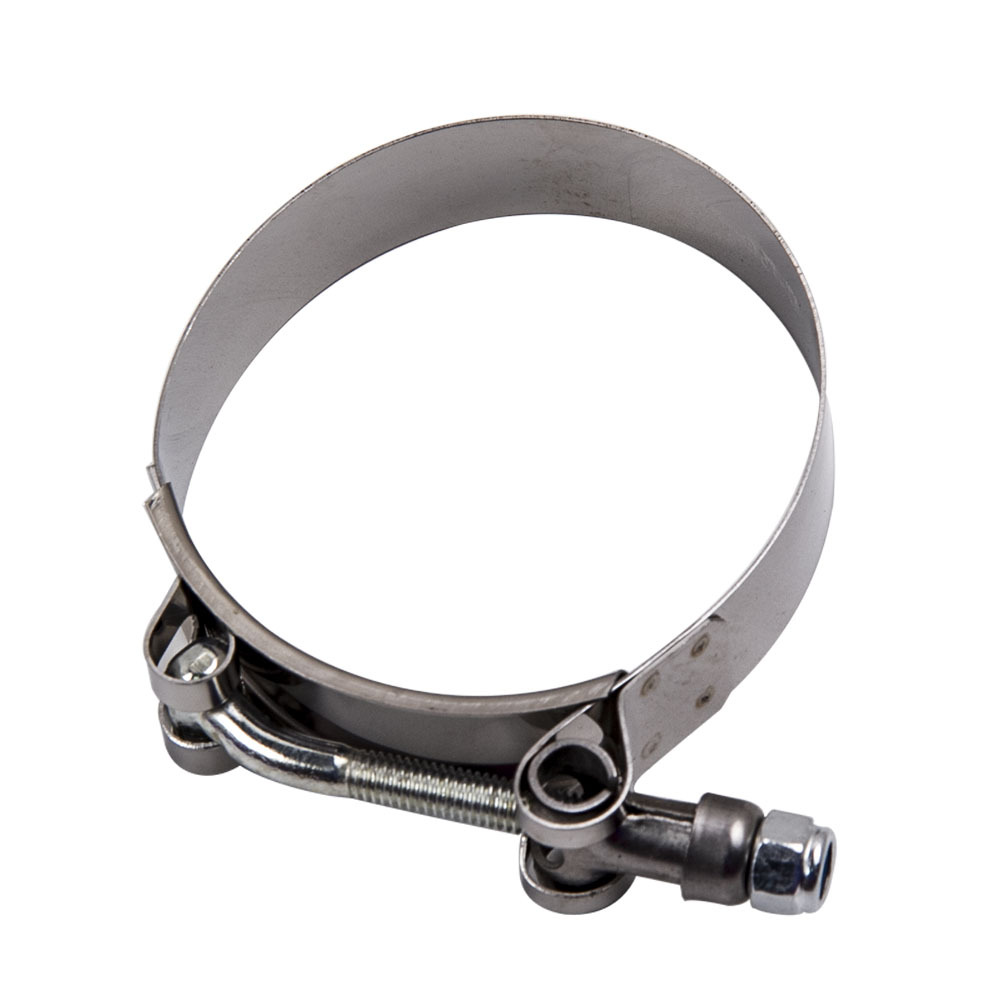

16 x 2.5" Stainless Steel T-Clamp
(You will get exactly as shown in the picture)

Intercooler spécification:

Universel (veuillez prendre les mesures correctes for vous assurer qu'il s'adapte à votre emplacement)

Dimensions hors tout de l'intercooler : 27.00" (L) X 7.00" (H) X 2.50"(W)

Taille du noyau : 21''x 7''x 2.25''

Matériel: Aluminium, poids léger conçu

Conception du noyau : Tube et aileron

Taille d'entrée / sortie : 2.5"

Débit d'air comprimé < 350 pieds cubes/min, évalué jusqu'à 500 HP max.

Chute de pression : 2~5psi at 35psi, 0.2~0.5psi at 15psi

Intercooler piping kit spécification:

Pipe Thickness: 1/16 inch / 1.58 mm

Pipe length: 18''

Made of 6061 aluminum.

2.5'' diameter piping kit with high quality silicone couplers and T-bolt clamps.

The couplers will not split easily + the clamps will not strip like the cheap kind.

Strong & tighter fitting use hair spray between the pipe and coupler.

Note:

* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us
