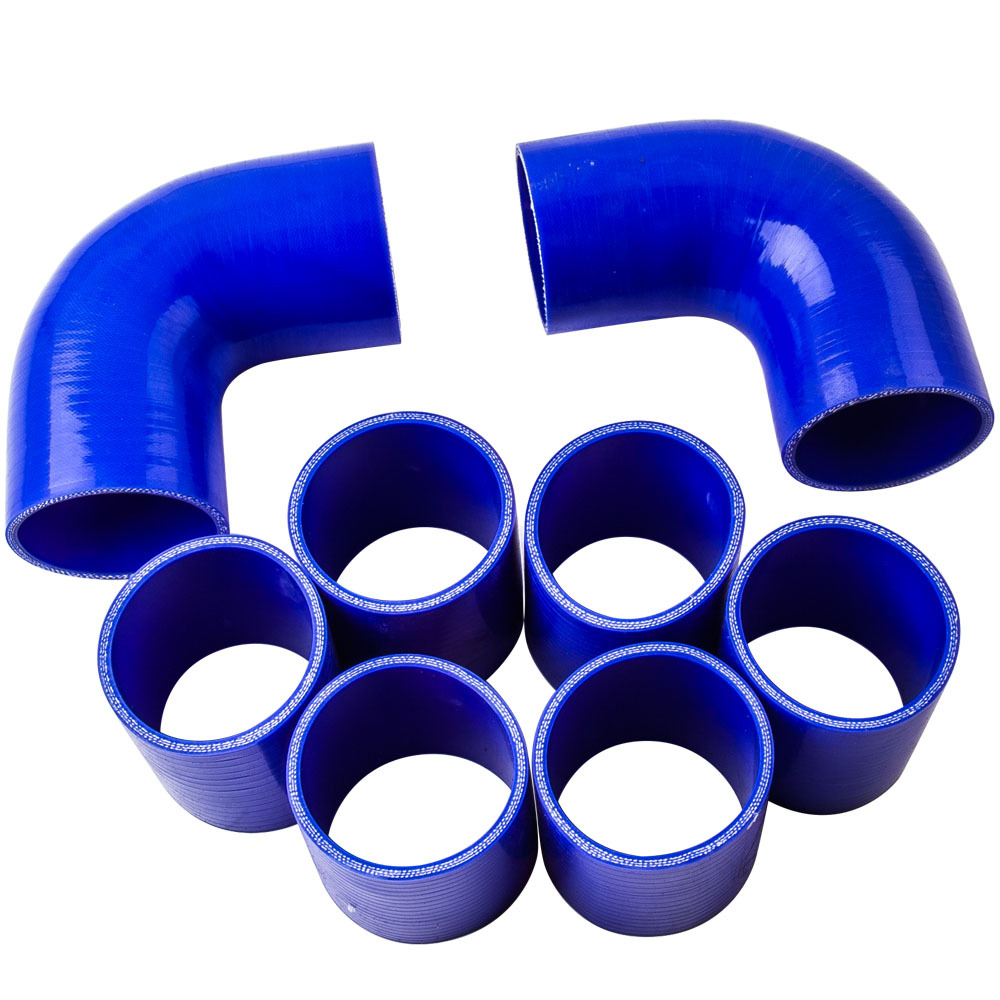

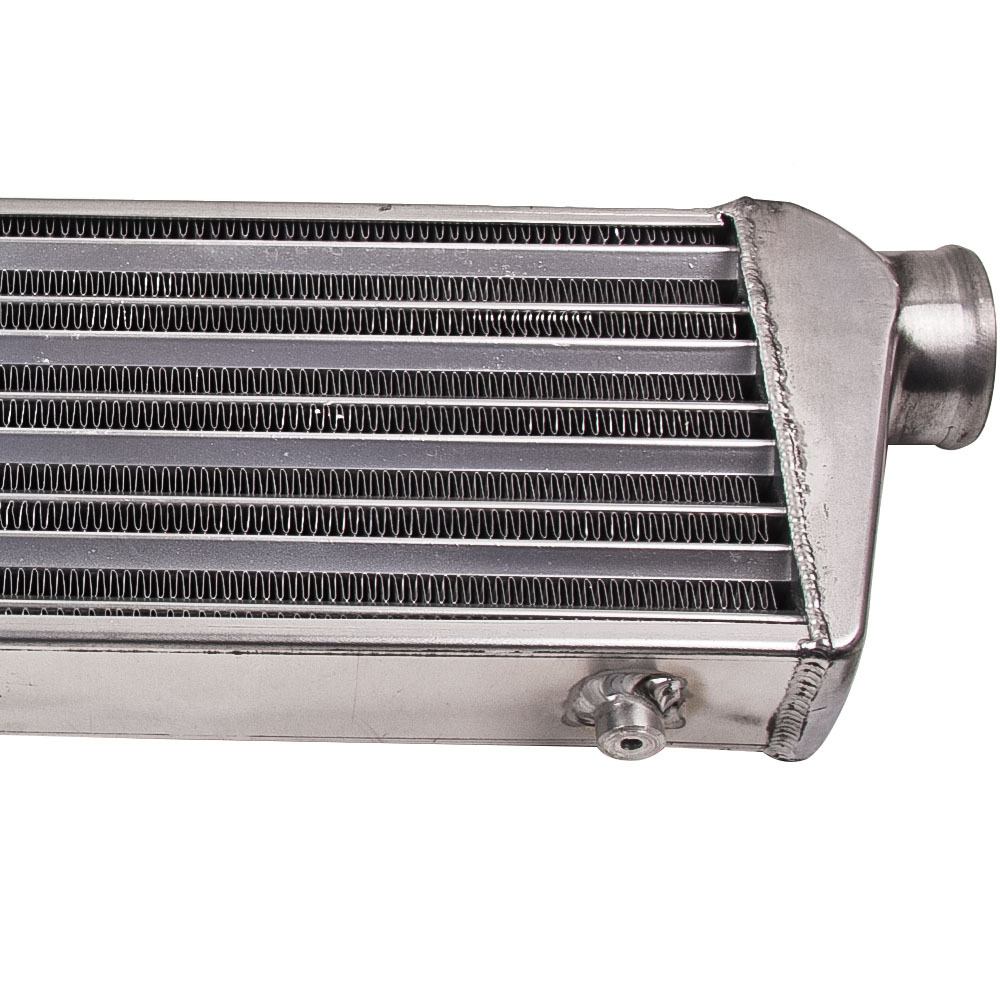

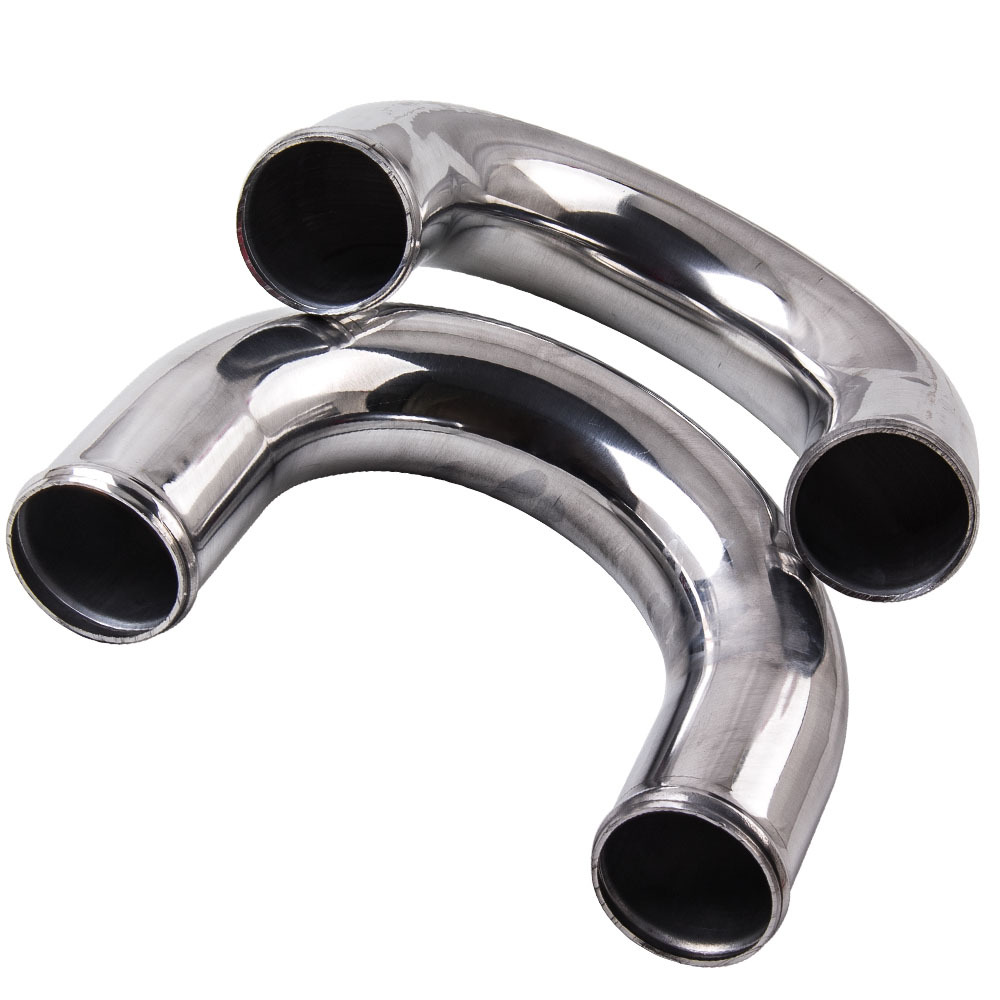

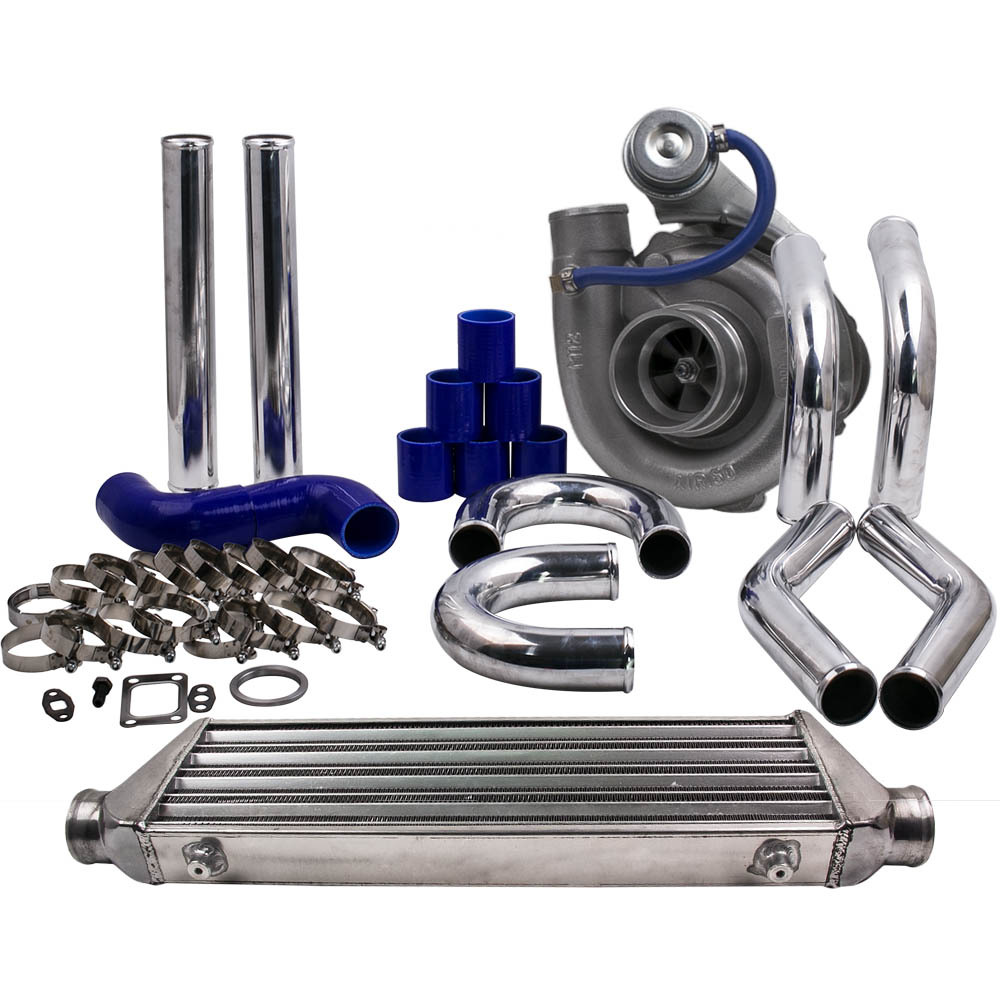

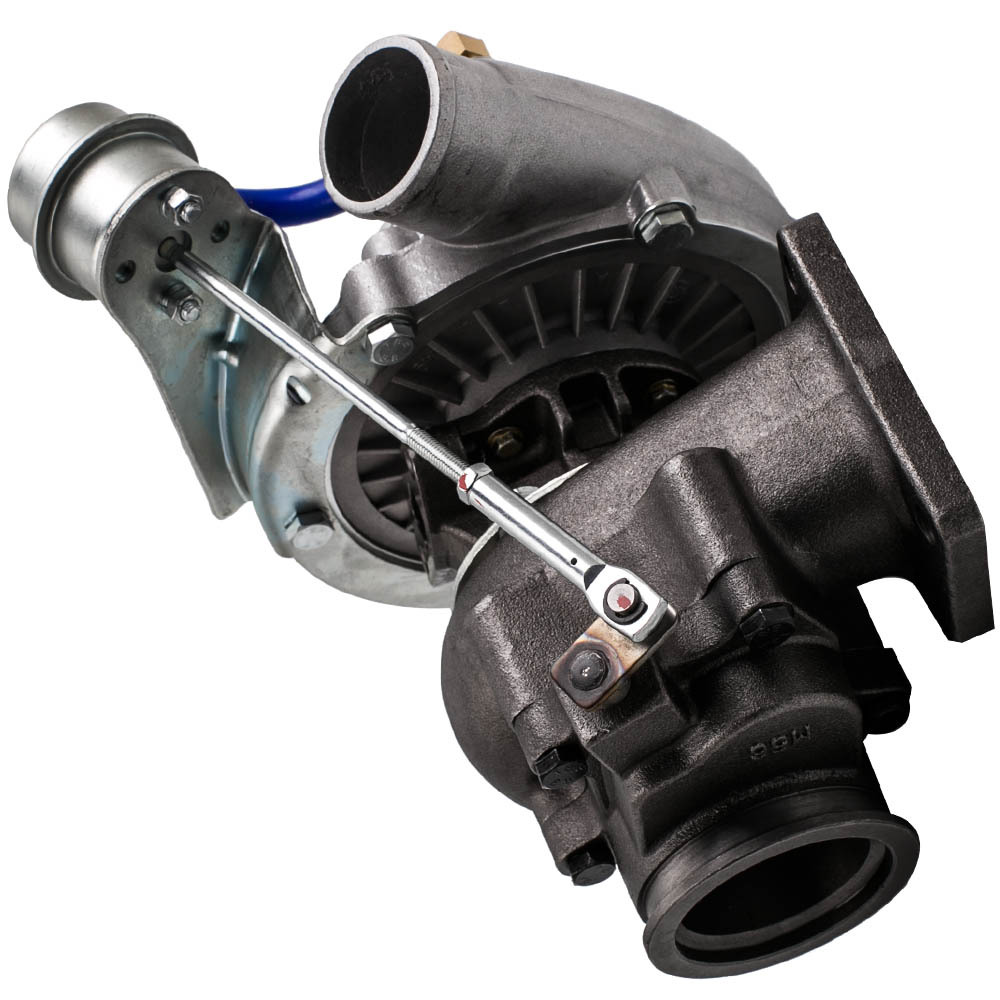

T3 Universal Turbo 0.63 A/RIntercooler + 2.5 64mm Intercooler Piping Kits

Important Note:

* Remplacez, réparez ou reconnectez l'élément du filtre à air conformément au manuel du fabricant for éviter d'endommager les roues du compresseur.
* Assurez-vous que la conduite de vidange d'huile est plus basse que le turbo lui-même.
* La voiture à essence doit installer un dispositif de refroidissement par eau for éviter la surchauffe.
* S'assurer que la sortie d'échappement est bien scellée par soudage

Application:

Perfect for all 4 or 6 CYL, 1.5L-2.5L engines
Horse Power: Capable of Boosting Horse Power up to 400BHP

Specification:

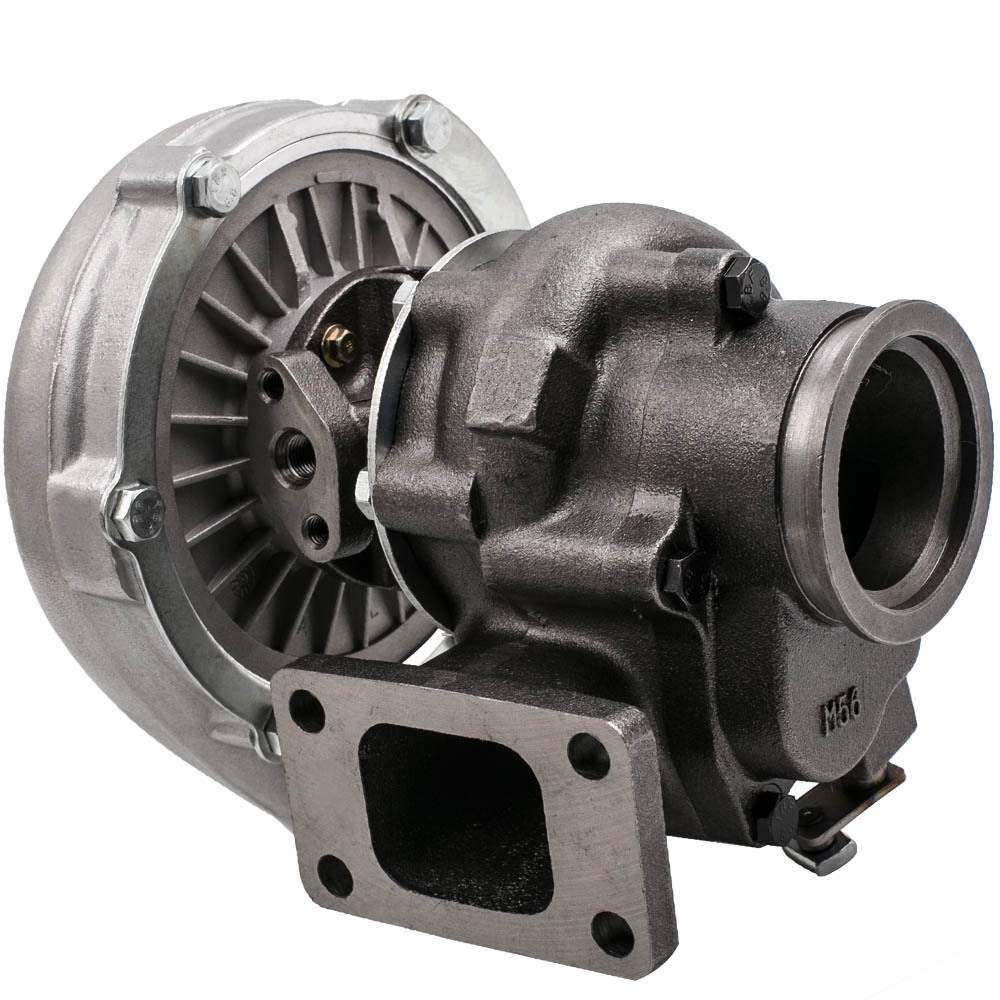

Exhaust Inlet (Turbo Manifold) Flange: T3 4 bolt Flange Patterns

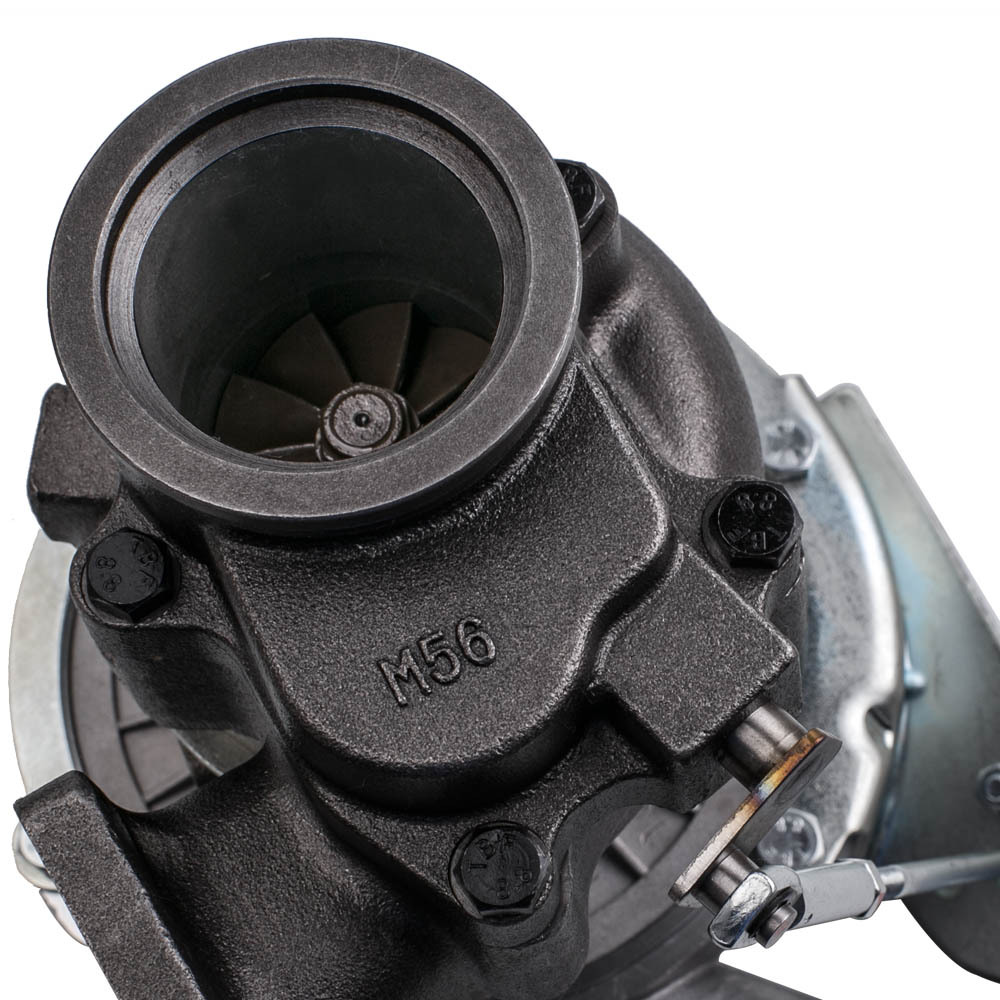

Exhaust Outlet () Flange: V-Band Flange

Turbine Trim: 74.2
Turbine Inducer Diameter: 64.8 mm
Turbine Exducer Diameter: 55.8 mm
Turbine A/R: 0.63

Turbine exhaust outlet: 79mm
Turbine exhaust inlet: 44.7mm/85.8mm

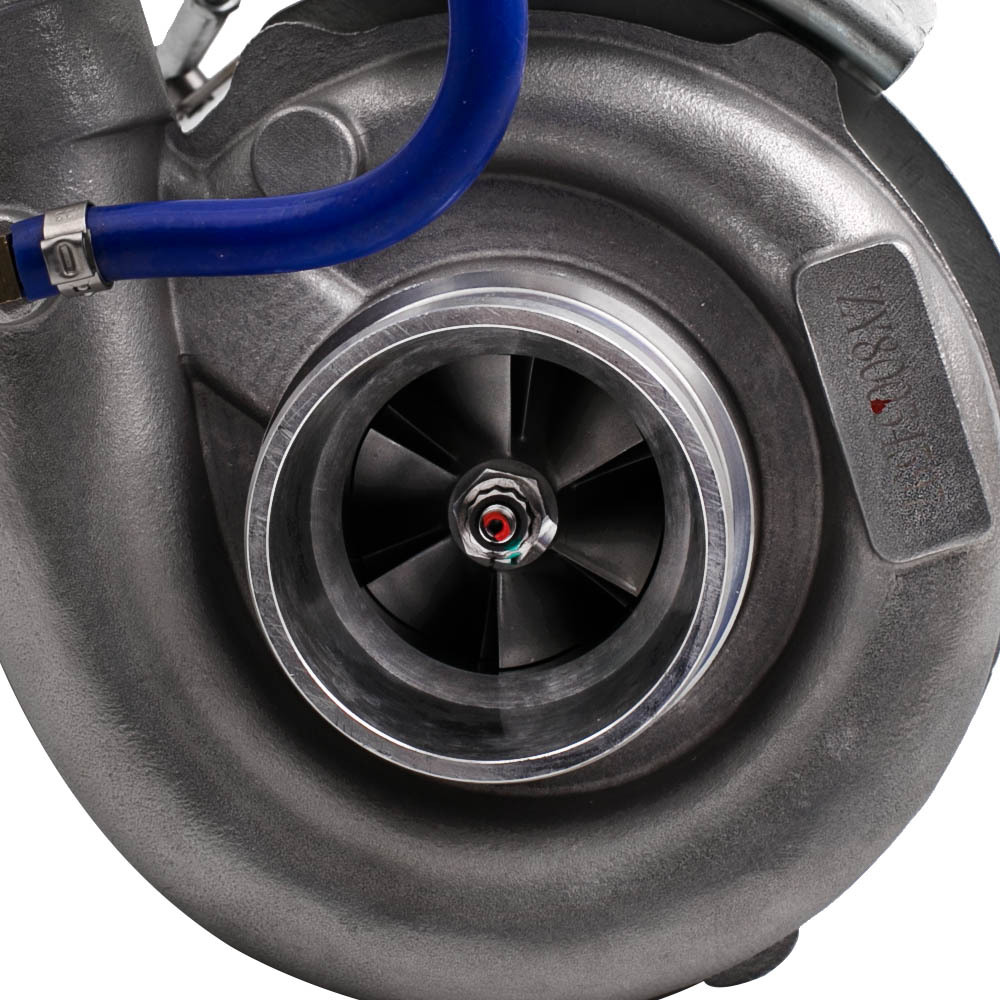

Compressor Trim: 48.1
Compressor Inducer Diameter: 52.7 mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.5

Compressor outlet: 78 mm
Compressor inlet: 51.5 mm

Bearing: Journal Bearing
Warranty: two years
Entrée d'huile : M12*1.25 & 2*M8*1.25
Sortie d'huile : 2*M8*1.25

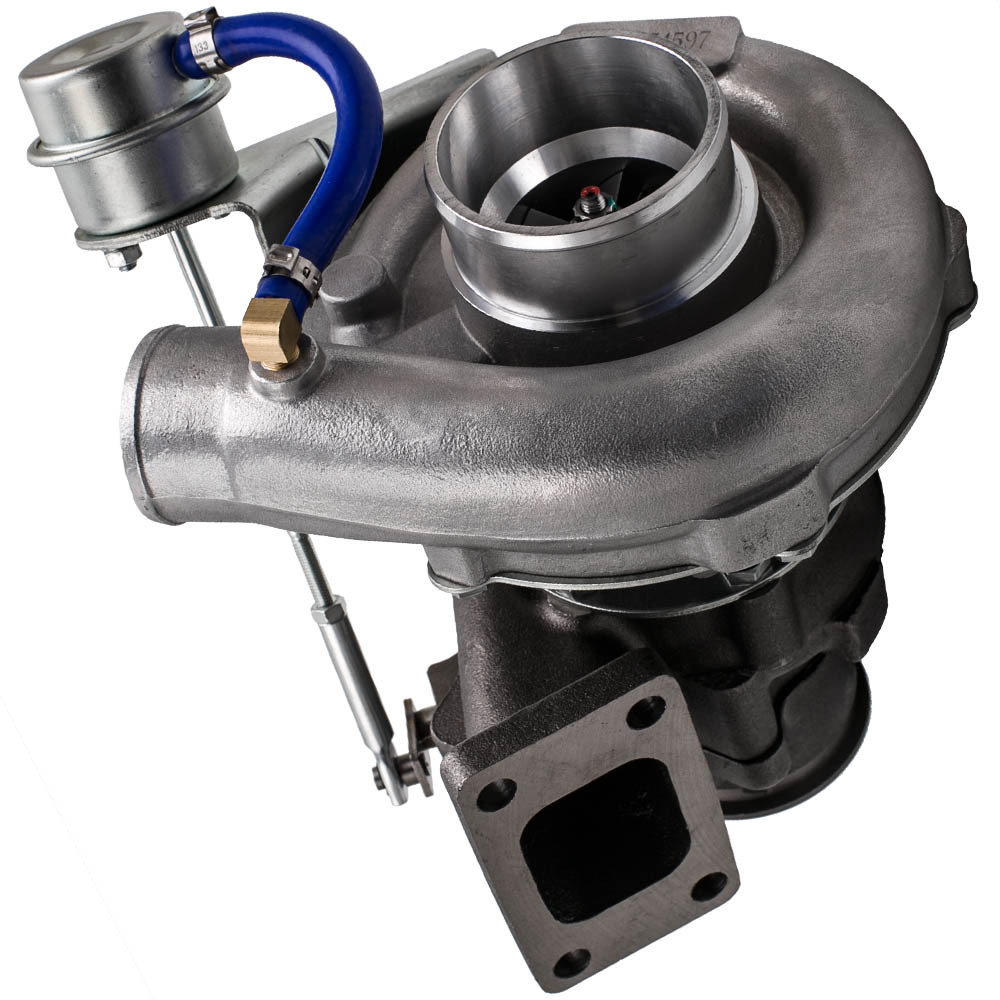

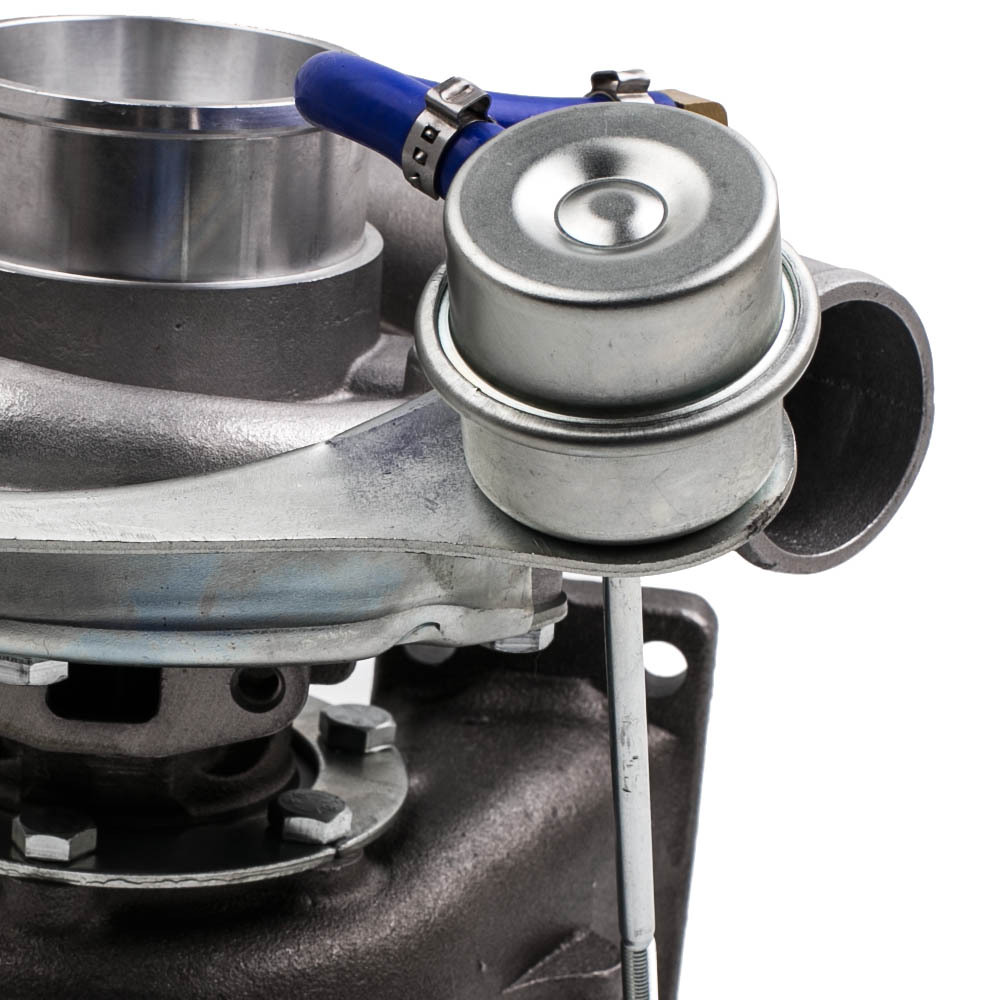

Wastegate：Avec Wastegate

Features:

* Turbine housing uses ductile iron QT450-10 Can withstand temperatures up to 700℃.
* Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900℃.
* Cast aluminium blades with good gas tightness and corrosion resistance.
* Capable of Boosting Horse Power up to 400BHP.

Notice:

* Please check the specifications carefully before buying. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles.
* Professional installation is highly recommended(No Instruction Included)
