Manilles arrière et entretoise de joint à rotule compatible pour Toyota Hilux LN107 LN166 89-04 Kit de levage

Introduction

Ball joint spacers Made from high quality aluminium , ensuring will not bend when stress is applied.H-shackles incorporate a stepped bolt design, ensuring that the shackles cannot be overtightened, resulting in deformation of the bushings.

*Overall lift height depends on the vehicle condition and installed accessories,Provide about 2" inch of lift
*Please make sure your car model is IFS ( Front Torsion & Rear Leaf Spring ) Model, and your leaf spring is installed above the axle.
*Rear exhaust pipe need to adjust a bit to create some space between shackle and exhaust pipe if shackle and rear exhaust pipe touch each other.
*Some model types of Hilux Upper Arm ball joint holder need to be cut to fit in ball joint spacer

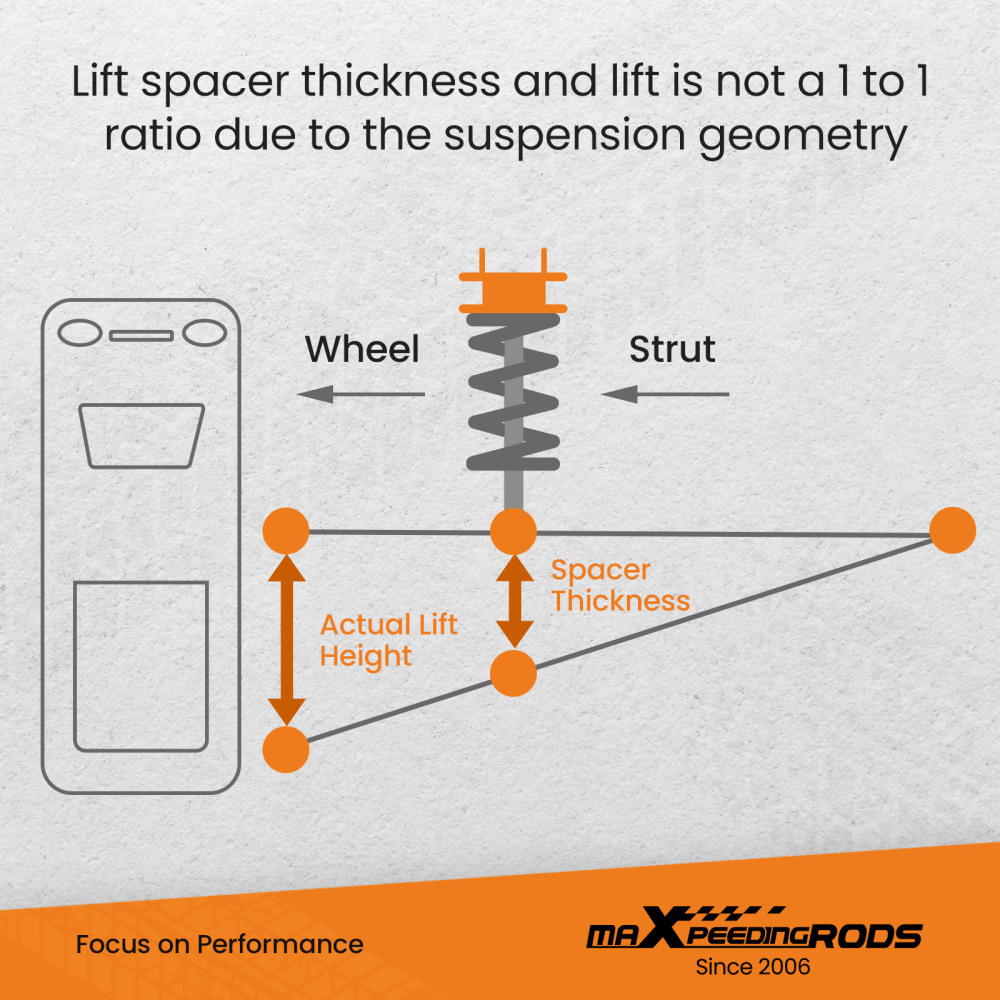

The lift spacer is NOT a 1:1 ratio - The lift height achieved is greater than ​the actual thickness of the spacer.The lift is increased due to the angle and length of the lower control arm.

Application

Compatible pour Toyota Hilux LN108 LN110 2L 4L Diesel 1988 - 1997
compatible pour Toyota Hilux LN108 LN112 2L-TE 4L Diesel 1995 - 1997
compatible pour Toyota Hilux LN107 LN109 LN111 3L 8L Diesel 1988 - 1997
compatible pour Toyota Hilux RN106 RN110 22R 4LPetrol 1988 - 1997
compatible pour Toyota Hilux RN106 RN110 22R-E 4L Petrol 1988 - 1997
compatible pour Toyota Hilux YN107 3Y 2.0L Petrol 1988 - 1997
compatible pour Toyota Hilux YN107 3Y-E 2.0L Petrol 1994 - 1997
compatible pour Toyota Hilux LN165 LN170 LN190 L-T 4L Diesel 1997 - 2001
compatible pour Toyota Hilux LN165 LN165H LN170H 2L-TE 4L Diesel 1997 - 1999
compatible pour Toyota Hilux LN166 LN171 LN191 3L 8L Diesel 1997 - 2005
compatible pour Toyota Hilux LN167 LN172 LN192 LN200 5L 3.0L Diesel 1997 - 2004
compatible pour Toyota Hilux LN167 LN172 LN192 LN200 5L-E 3.0L Diesel 2000 - 2005
compatible pour Toyota Hilux RZN167 1RZ-E 2.0L Petrol 1997 - 2004
compatible pour Toyota Hilux RZN168 RZN173 RZN193 2RZ-FE 4L Petrol 1997 - 2005
compatible pour Toyota Hilux RZN169 3RZ-F 7L Petrol 1997 - 2001
compatible pour Toyota Hilux RZN169 RZN174 RZN194 RZN200 3RZ-FE 7L Petrol 1997 - 2005
compatible pour Toyota Hilux KDN166 1KD-FTV 3.0L Diesel 2002 - 2004
compatible pour Toyota Hilux KDN165 KDN170 KDN190 2KD-FTV 5L Diesel 2001 - 2005
compatible pour Toyota Hilux KZN165 KZN190 1KZ-TE 3.0L Diesel 1999 - 2005
compatible pour Toyota Hilux VZN167 VZN172 5VZ-FE 4L Petrol 2002 – 2005

Only Fit IFS ( Front Torsion & Rear Leaf Spring ) Model

Specification

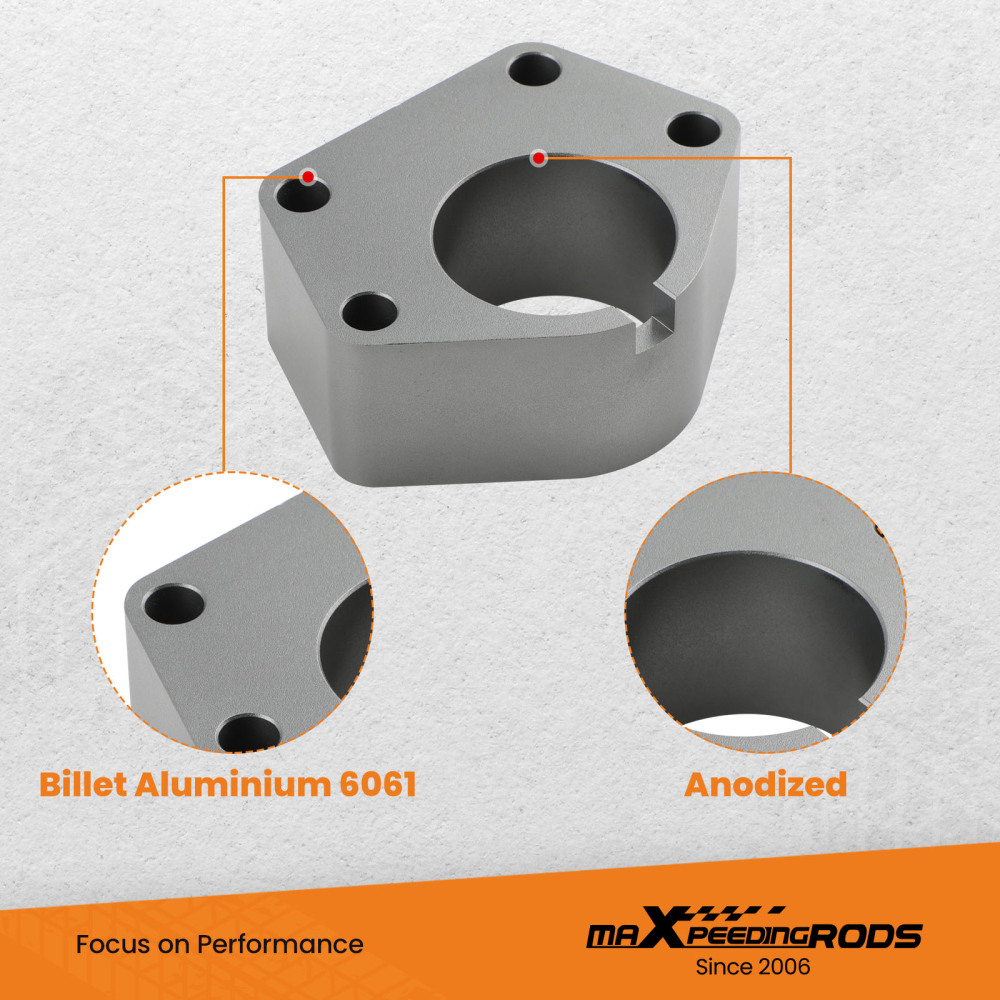

Material：Aluminium
Lift Height: about 2"
Place on Vehicle: Front ,Rear

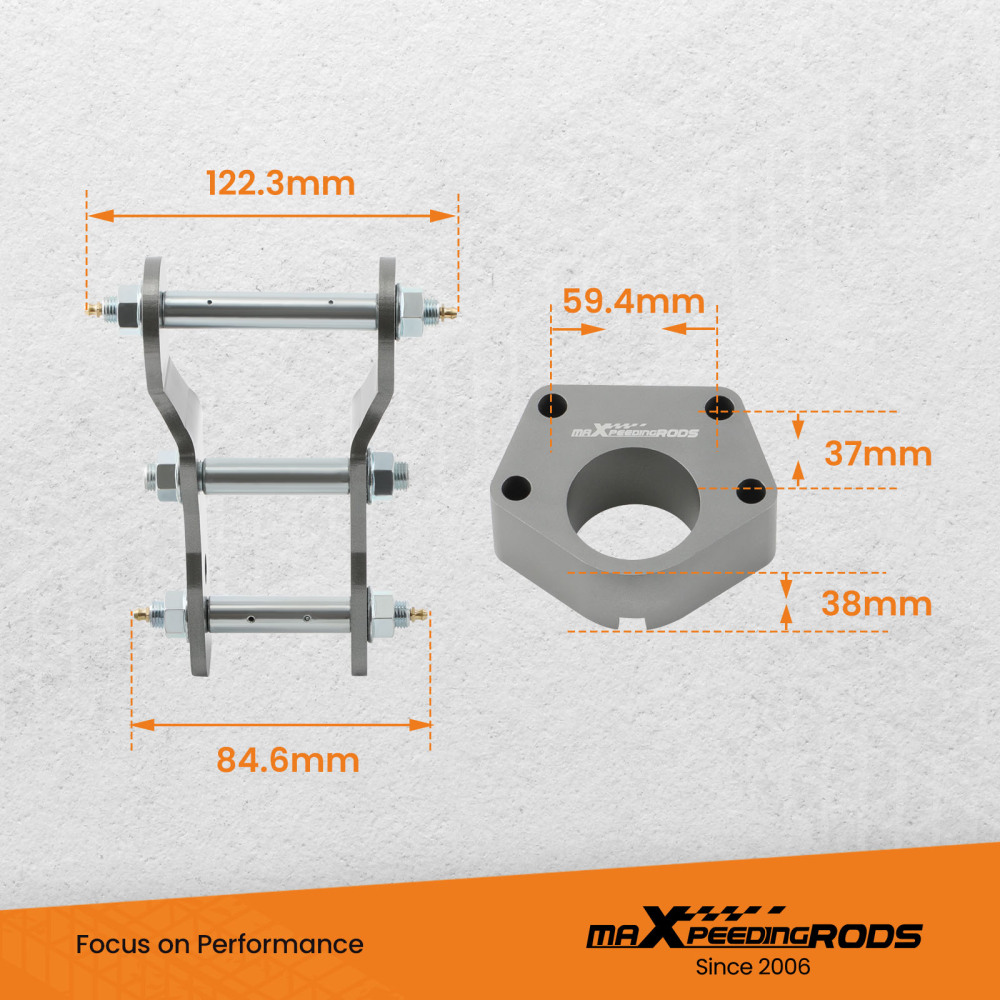

Ball Joint Spacer Thickness：38mm
Package Size：32*23*14
Package Weight: 5.4KG

Package included

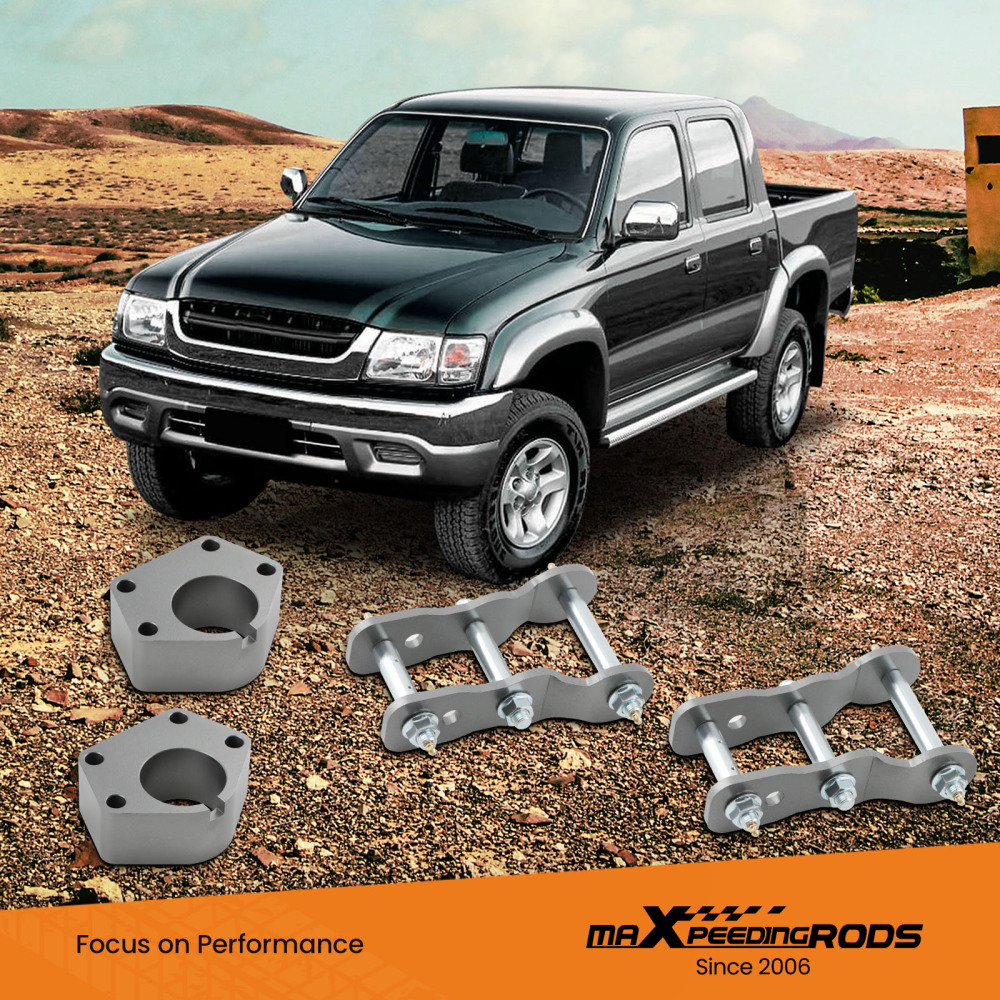

Package Includes:
2xRear Greasable H-Shackles
2xIFS Ball Joint Spacer
8xHexagon bolts M8*1.25*75-30

Feature

* Installation of this parts will improve Driving responsiveness and handling.
* H-shackles Grease nipples are encapsulated in the nut to avoid being damage offroad.
* It will a much smooth ride on or offroad as the shackles are able to move with the leaf spring giving a much more linear stress reduced suspension action.
* these spacers increase your functionality and ability to custom tailor your suspension characteristics while increasing clearance between the fenders and front wheels.
* Designed to maintain factory ride quality for maximum comfort
