Kits de suspension complets combinés filetés compatible pour Mitsubishi Eclipse Amortisseurs Shockkit d'abaissement

Application for

Compatible pour Mitsubishi Eclipse 1995-1999 USA D38A CONVERTIBLE, 4CYL/TURBO
Compatible pour Mitsubishi Eclipse 1995-1999 USA D33A 4CYL/TURBO
Compatible pour Mitsubishi Eclipse 1995-1999 USA D32A 4CYL/TURBO
Compatible pour Mitsubishi Eclipse 1995-1999 USA D31A  4CYL/NON TURBO

Specifications

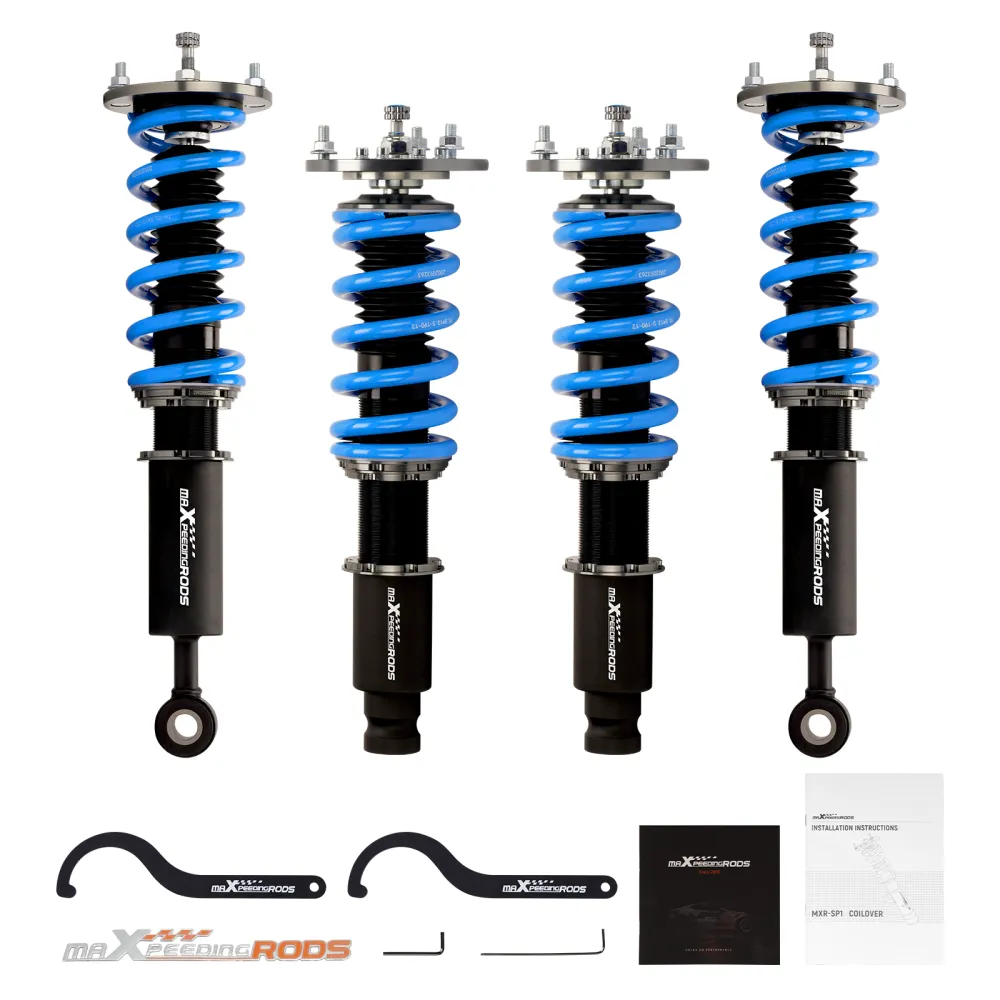

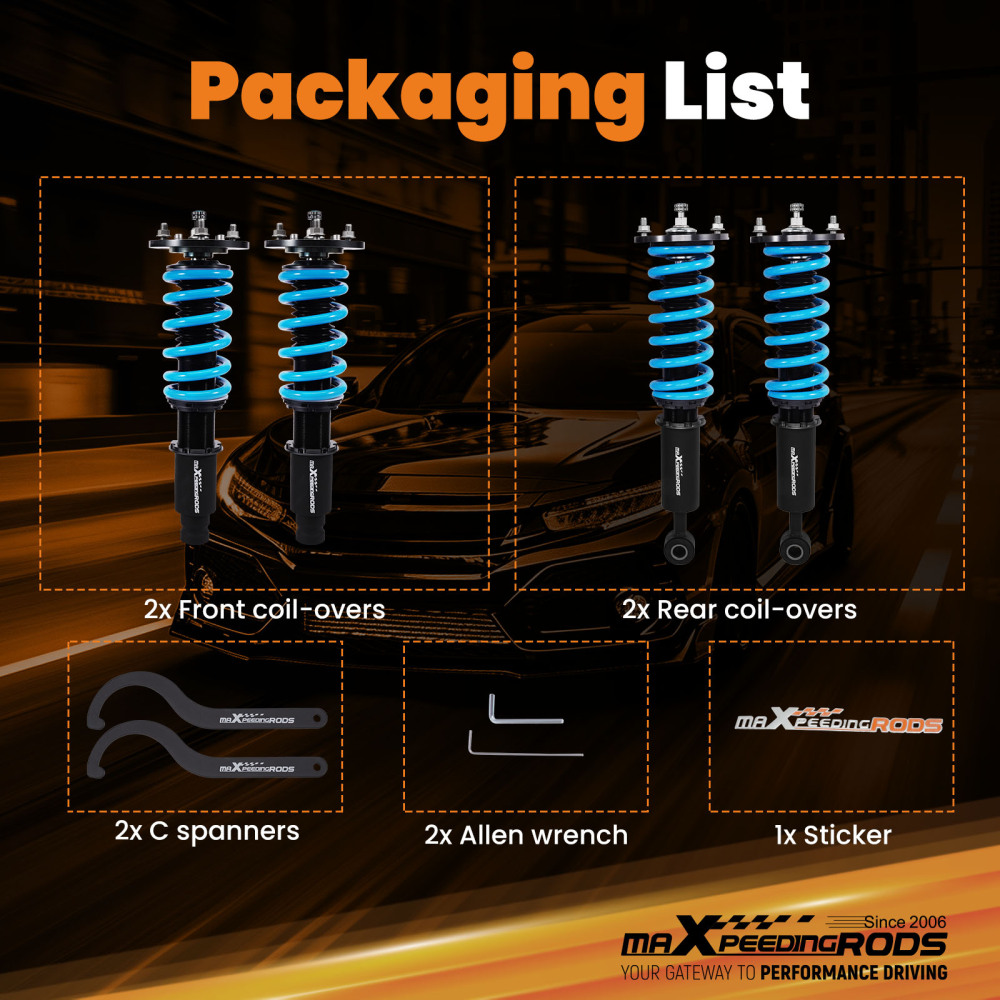

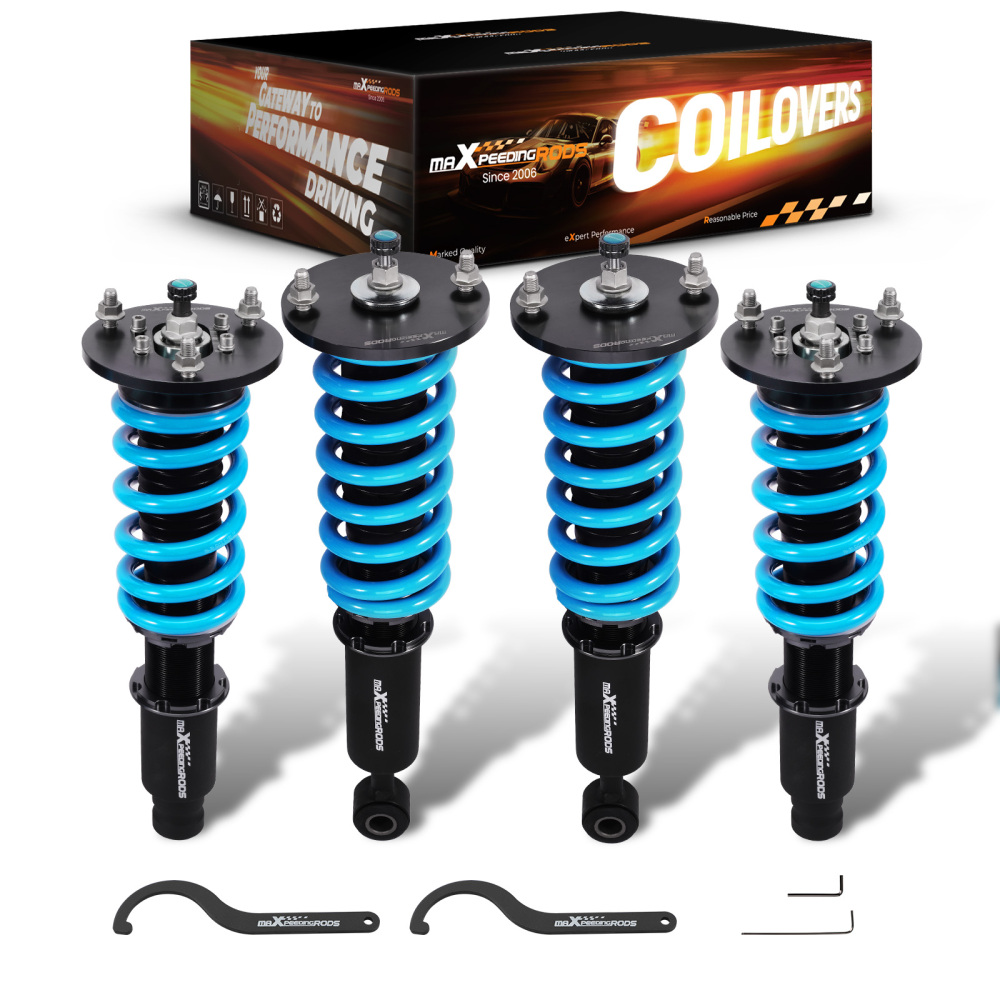

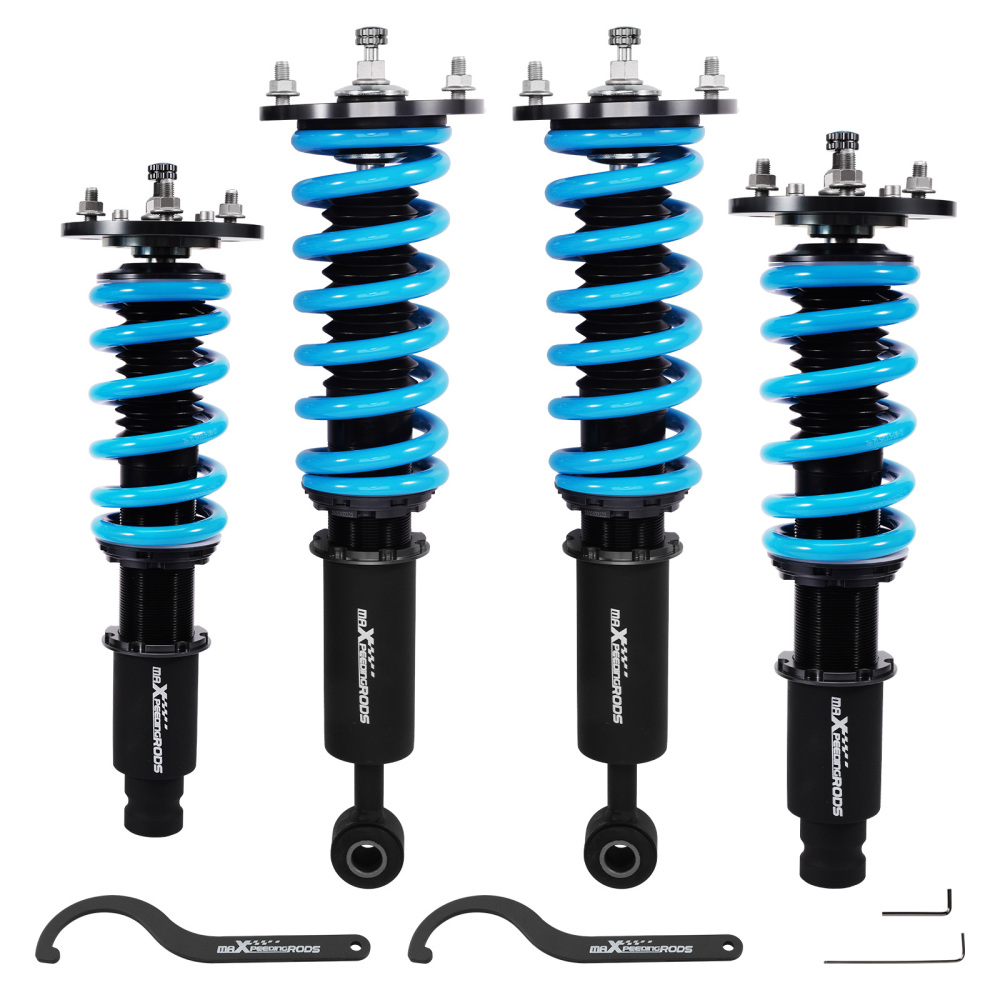

Quantity: Complete coilovers assembly 2 front and 2 rear / A pair wrench for height adjustment

Type: Lowering Kit

Top mount: front camber plate; rear rubber
Front Spring Rate:  12kg/mm  (672 lbs/in)
Rear Spring Rate: 9kg/mm  (504lbs/in)
Spring length Front: 190mm
Spring length Rear: 190mm
Coilover overall length Front: 445mm-495mm
Coilover overall length Rear: 485mm-575mm
Adjustable height: Yes lowering 1" to 3"
Spring Preload: 7-10 mm
Shock type：Twin tube
Color: black body with gold spring

Warranty: one year' warranty for any manufacturing defect

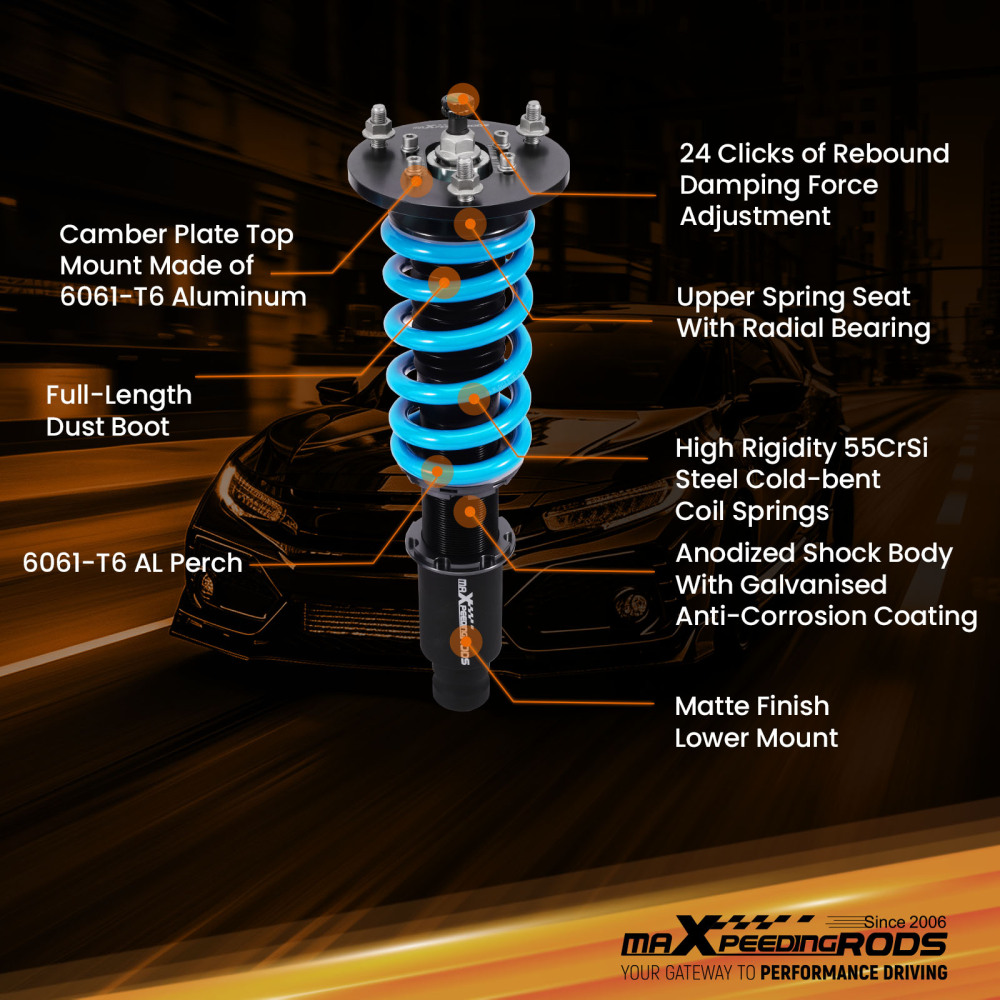

Feature

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.

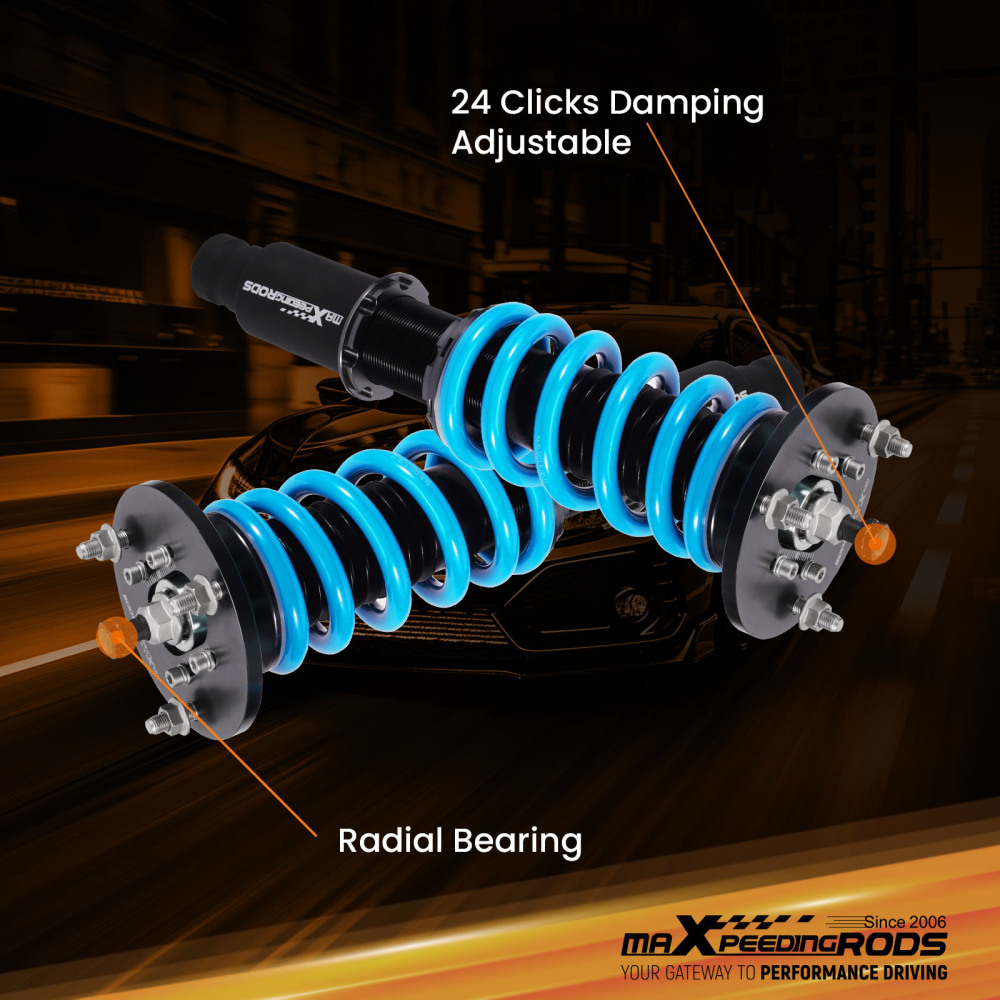

2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

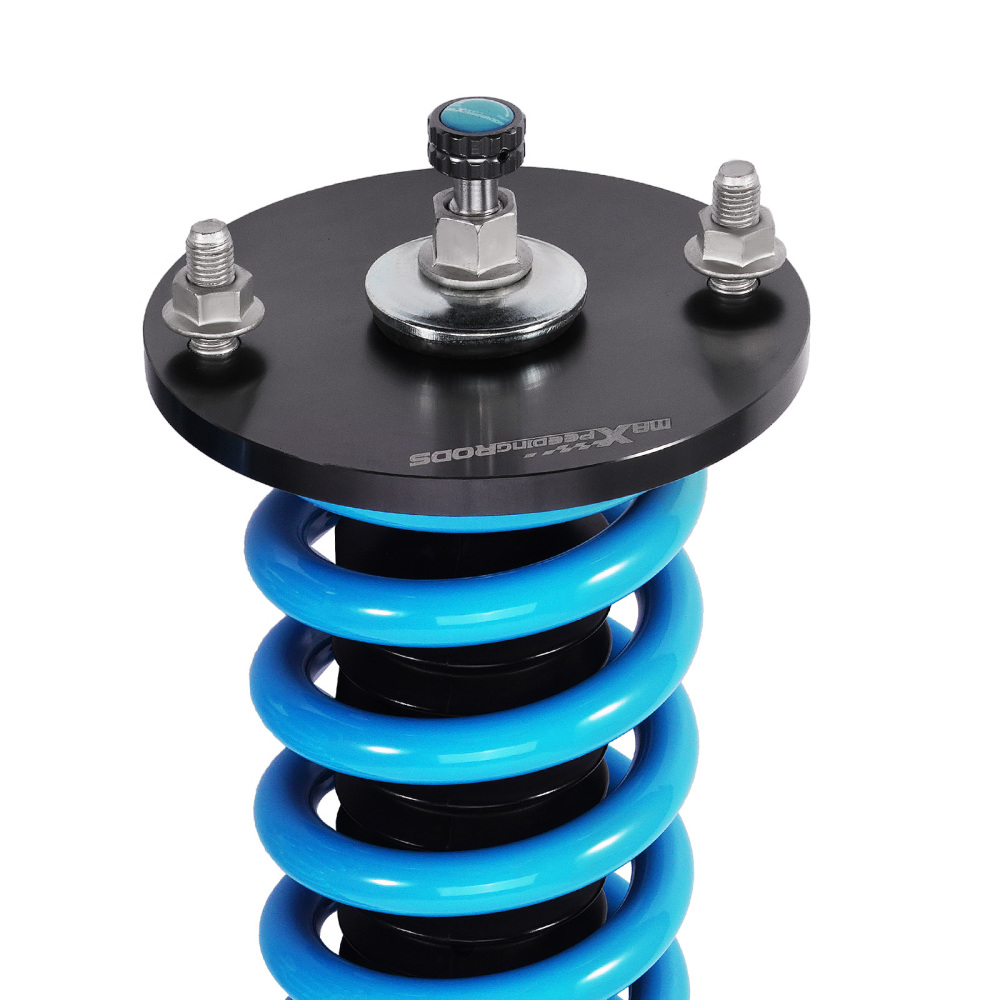

3. Pillow ball top mounts improve the steering feel and response.

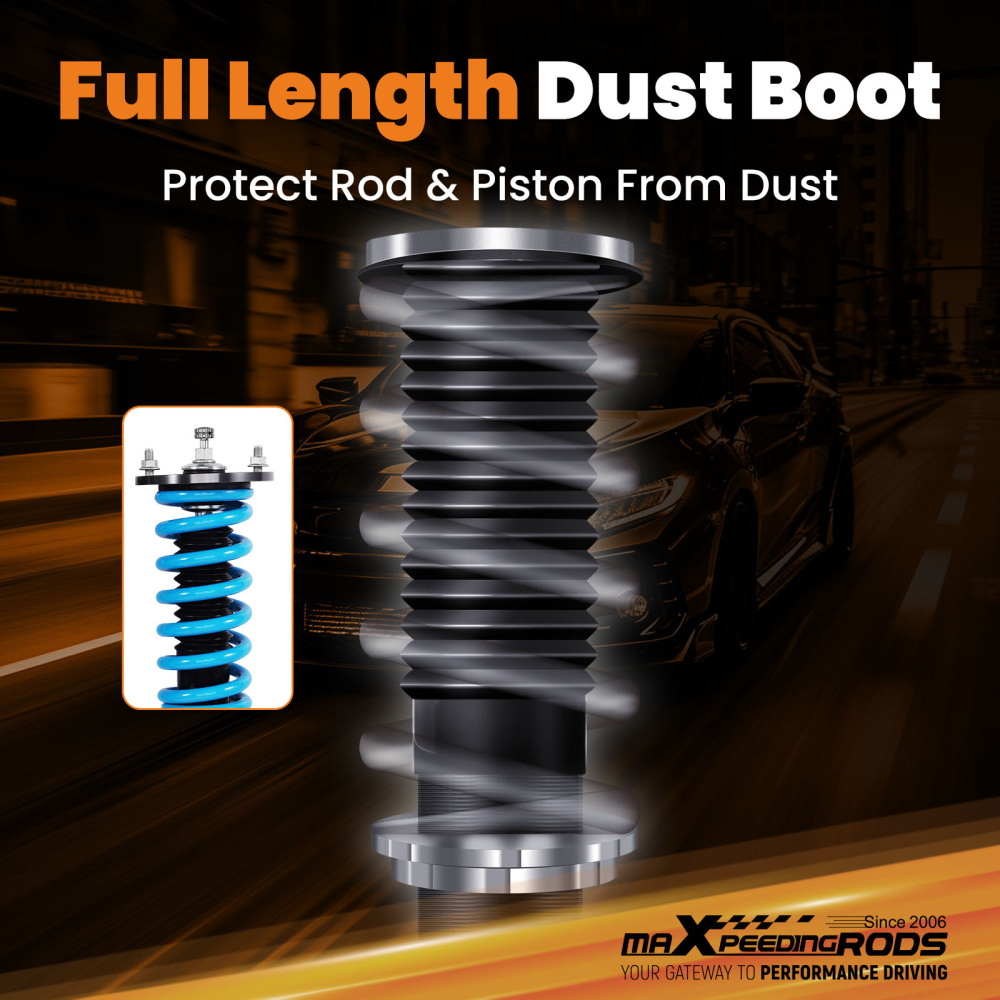

4. Full length dust boot keeps shaft and oil seal from damage.

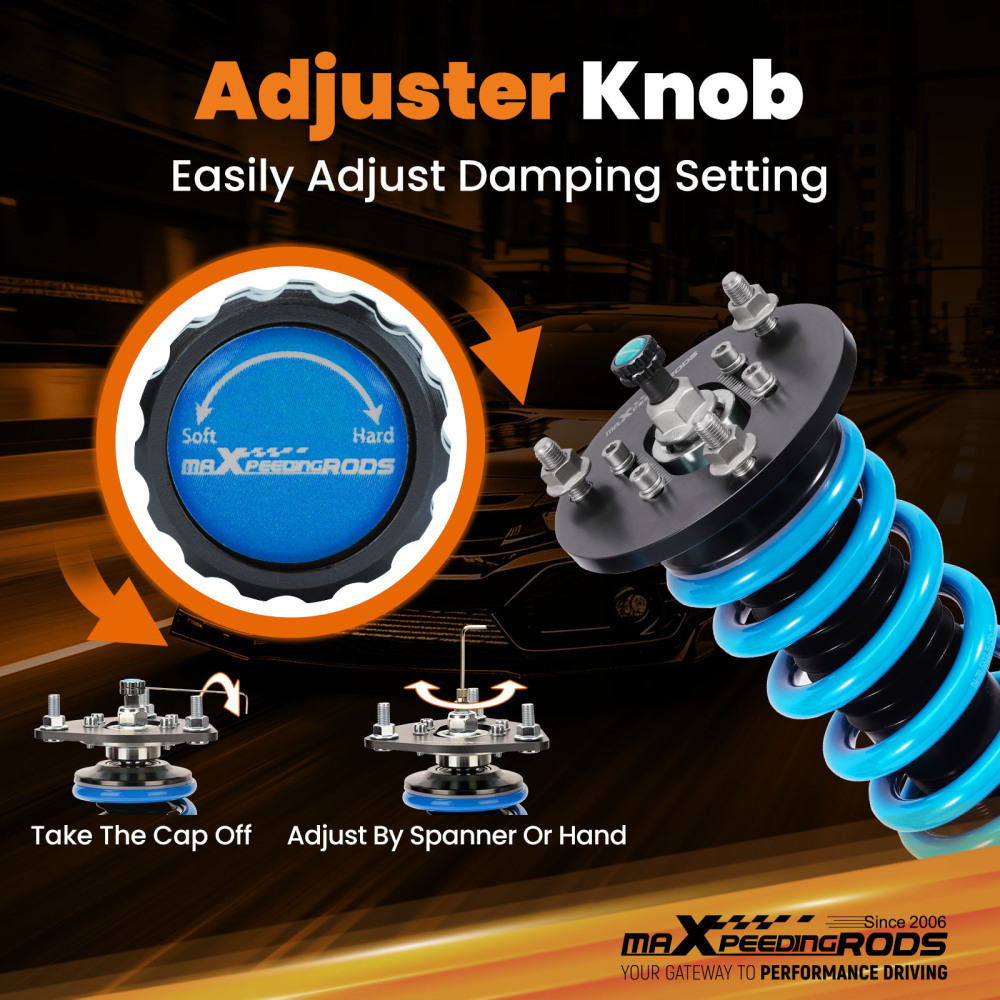

5. Upgraded damper adjust knob makes damping setting easier.
6. Upgraded valving for more smooth ride.

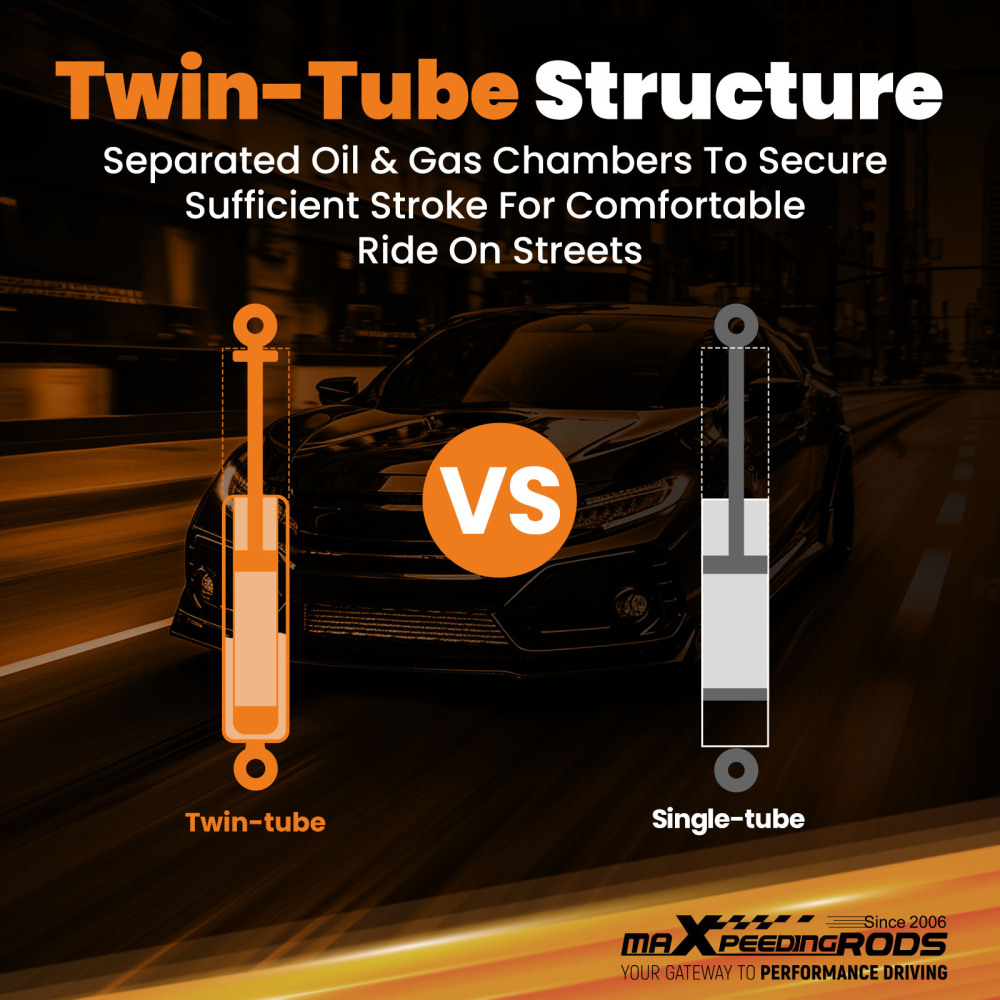

7. Twin-Tube structure allows sufficient stroke within the shock absorber.
8. High-Performance Damping Oil--maintains a stable viscosity in a broad temperature range, which sustains smooth stroke and reliable damping force in a variety of circumstances.

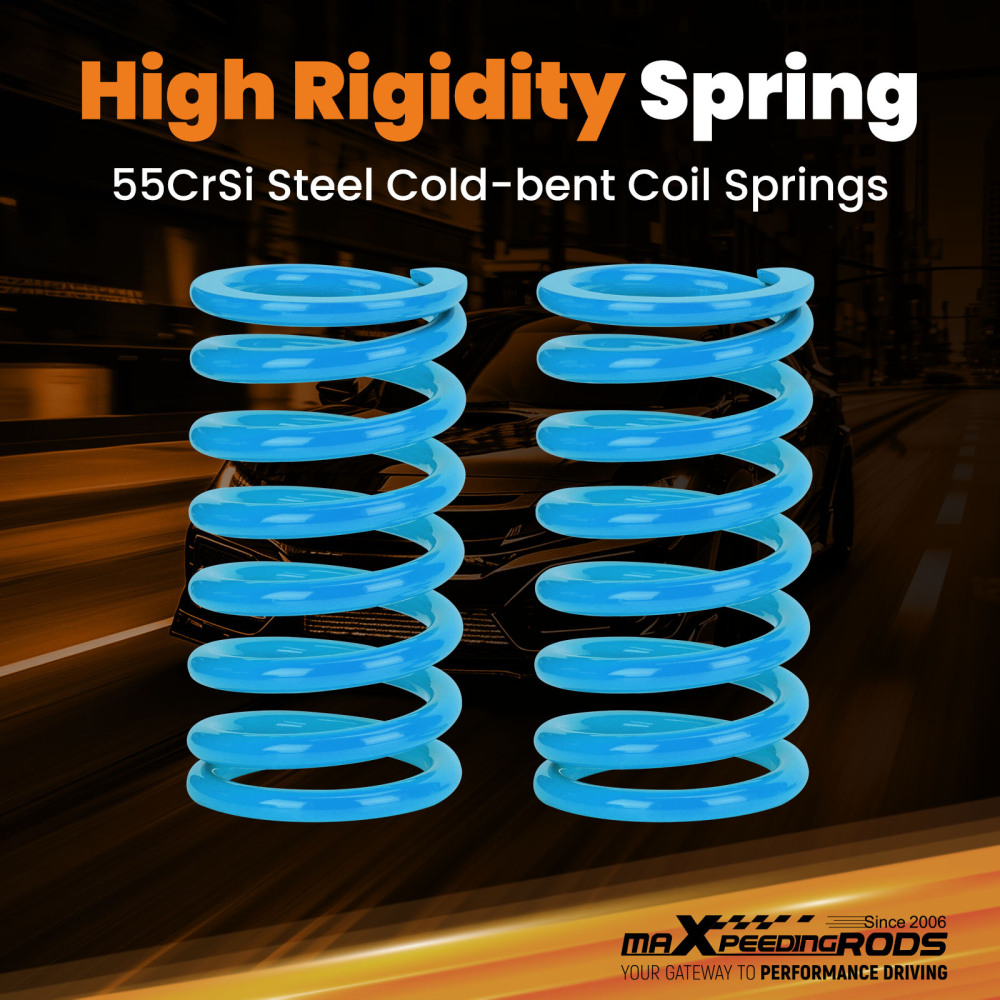

9. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%.
10. Decent appearance benefits from CNC machined parts and special surface treatment.

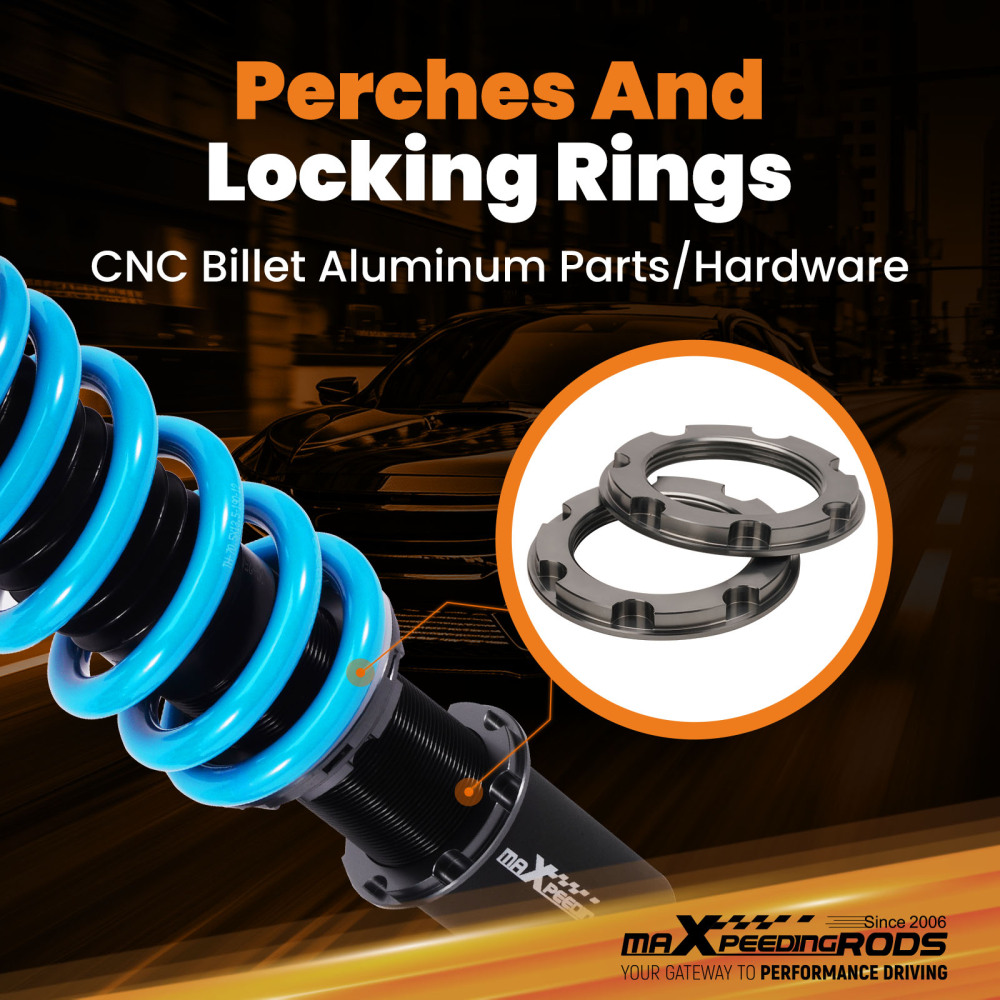

11. Most pieces in our coilover systems, including mounts, collars and spring perches, are made from 6061-T6 Billet Aluminum resulting in light weight, durable and rust resistant components.
12. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.

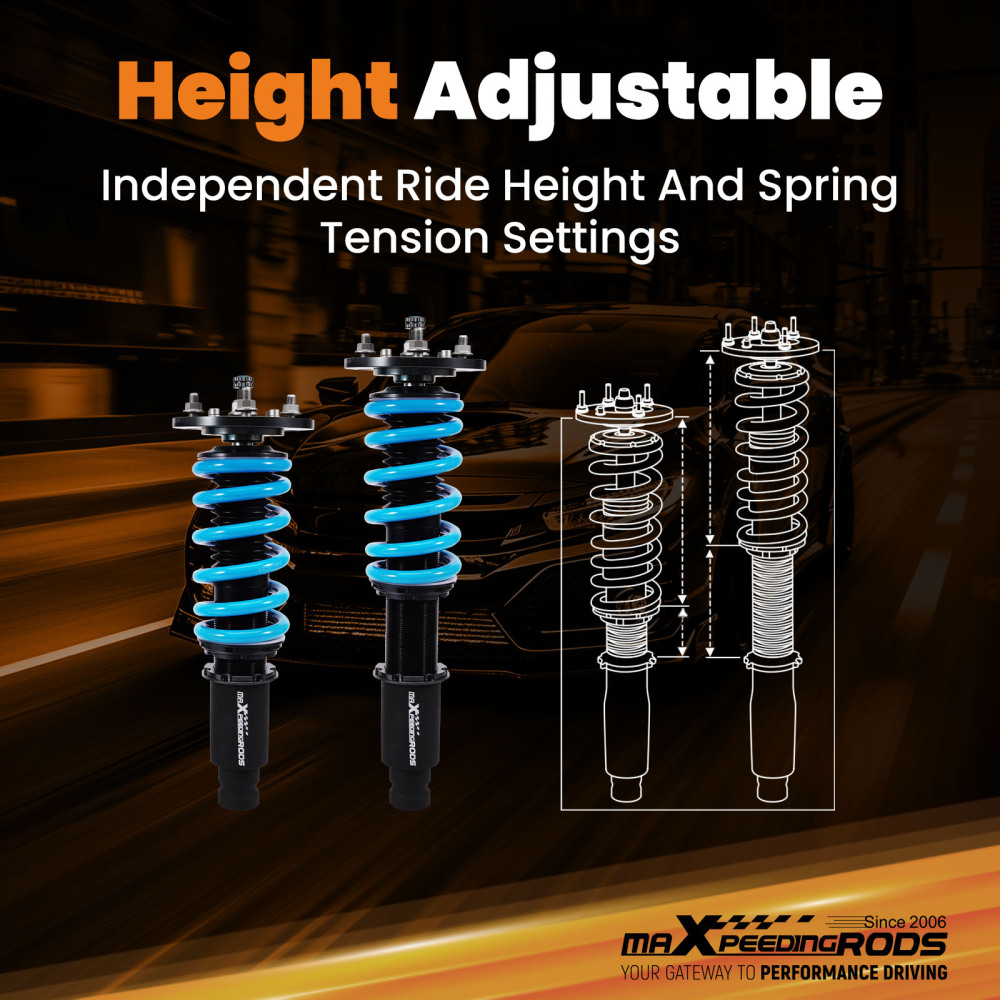

13. Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.
14. All coilovers were produced and assembled at dust-free factory which guaranteed the highest quality.

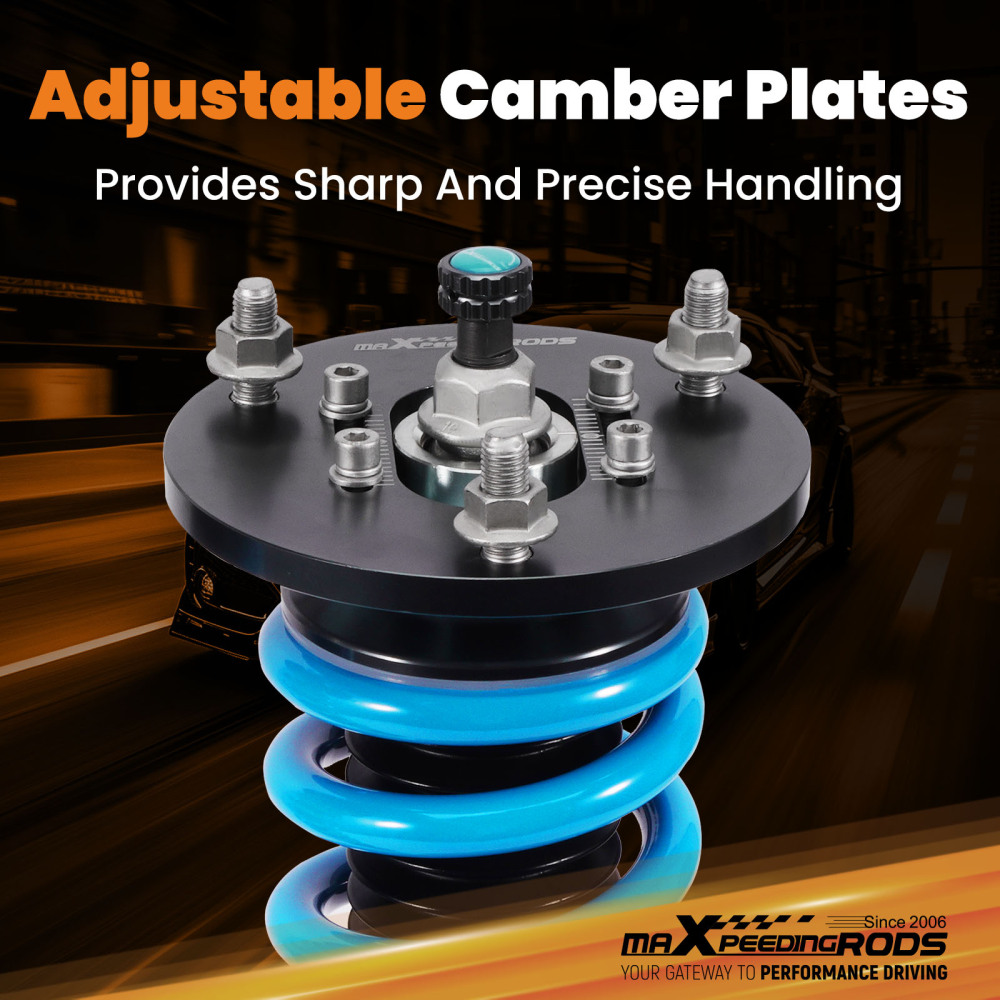

15. Camber plate top mounts help to eliminate the need for a separate camber kit.

Notice

* Instruction Included. (If not, we could offer you the E-book version. ); Professional installation & alignment suggested.
