Kit De Levage Horizontal 2 Pouces Avec Entretoises compatible pour Ford f150 4WD 2009-2013

Application

for 2010-2012 compatible pour Ford F150 AWD
for 2009-2013 compatible pour Ford F150 4WD
NOTE： Does NOT fit Raptor models
Does NOT fit models equipped with Heavy Duty Payload Package (seven lug models).

Specification

type: suspension leveling kit
lift height: 2" front, 1" rear
Material: High Tensile Strength Carbon Steel
Finish: Powder coated
Diameter of piston rod: F&R 18mm/0.70"
Piston diameter：F 32mm/1.25" R 35mm/1.37"
Outer cylinder diameter: F&R 54mm/2.12"
Travel: F: 115mm/4.52" R: 290mm/11.41"
extended length: F: 620mm/ 24.4"
R: 765mm/30.11"
collapsed length:F: 505mm/ 19.88"
R: 475mm/18.7"
Nitrogen charged：yes
spring length: 420mm/16.53"
spring rate: 9.5kg/mm (475.97lbs/in)

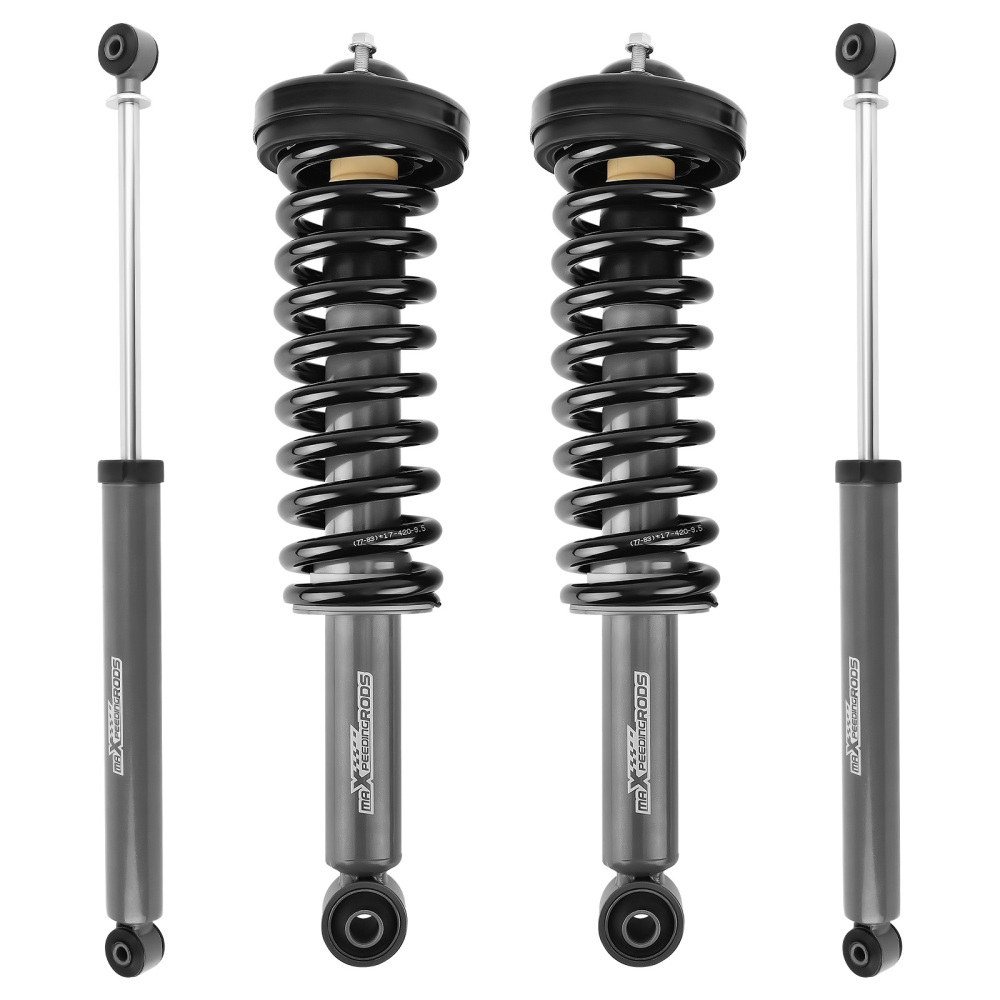

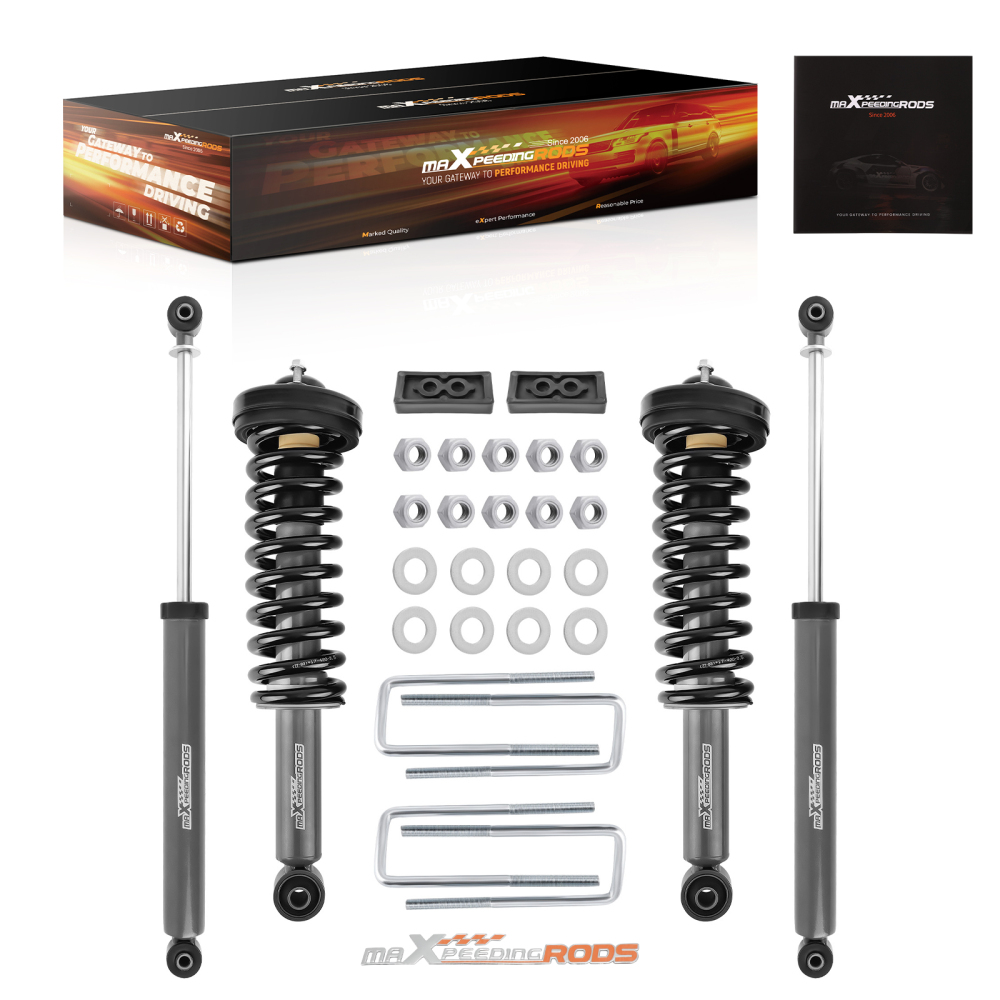

Package included

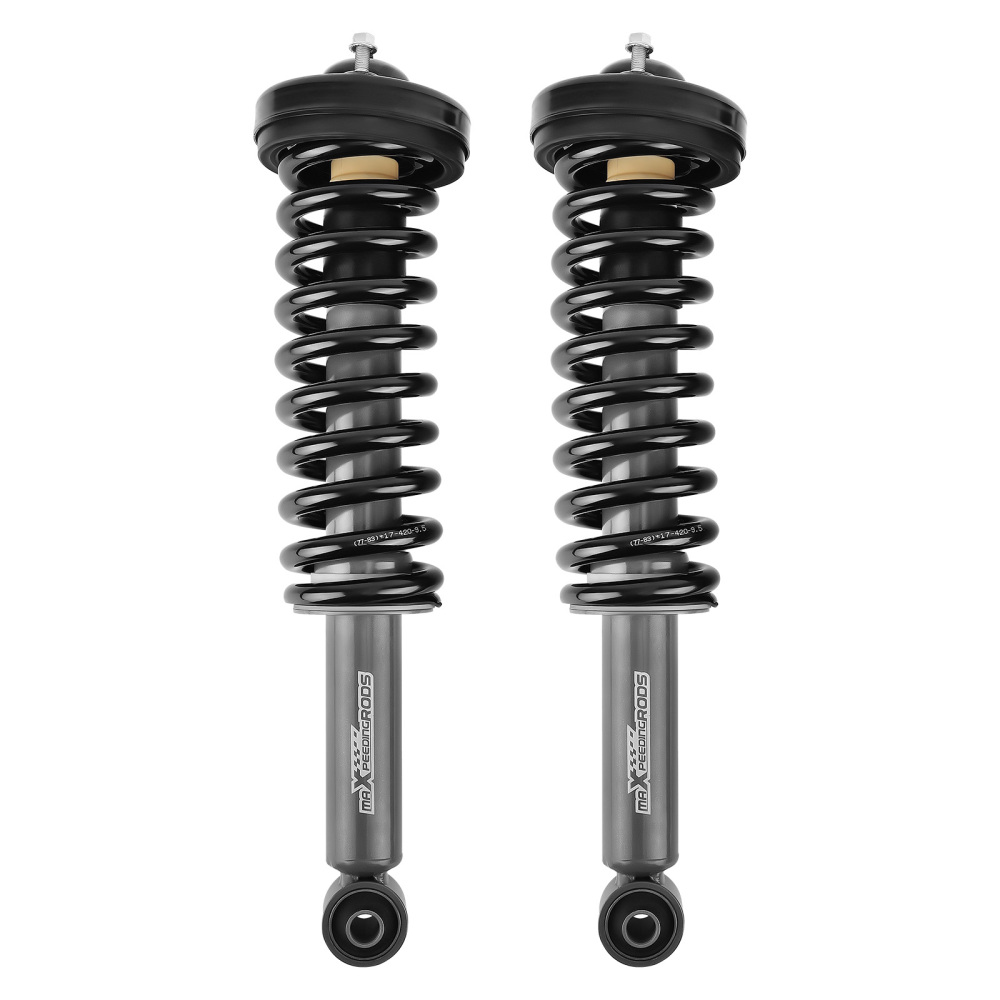

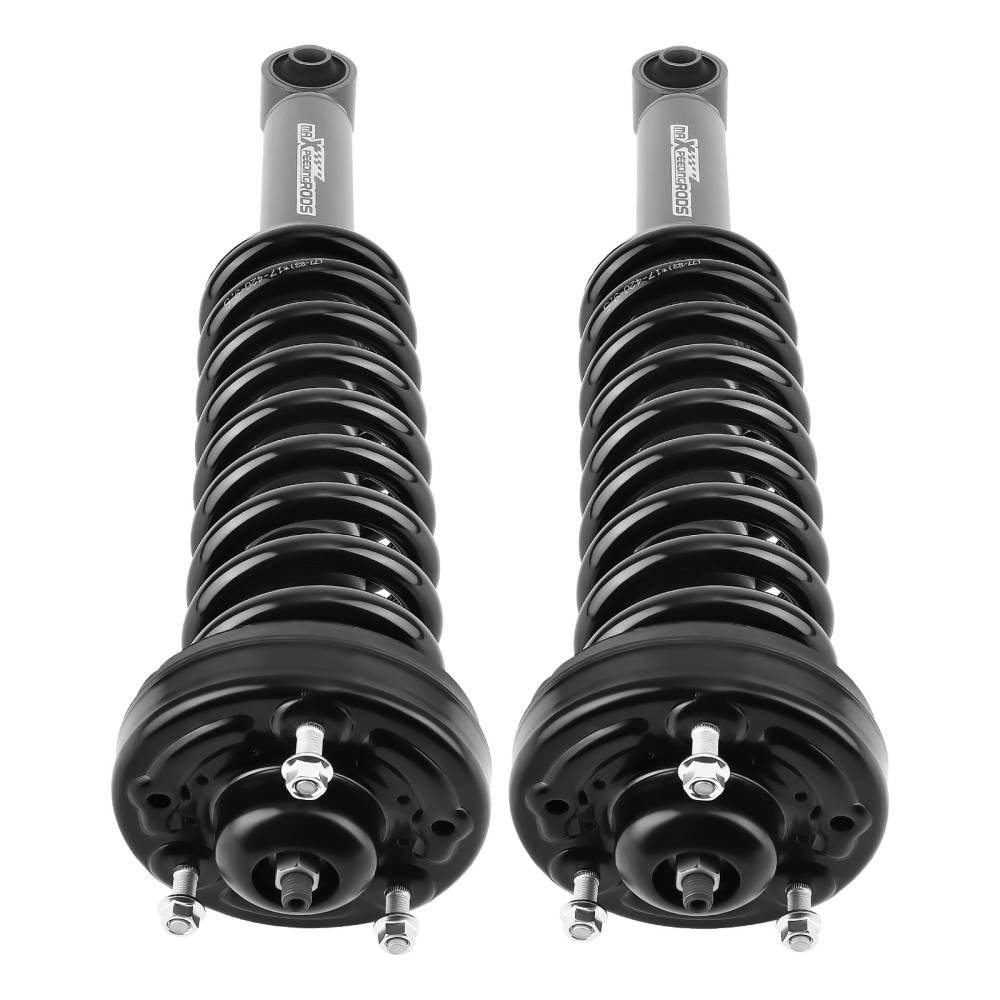

2xFront Lifted Struts

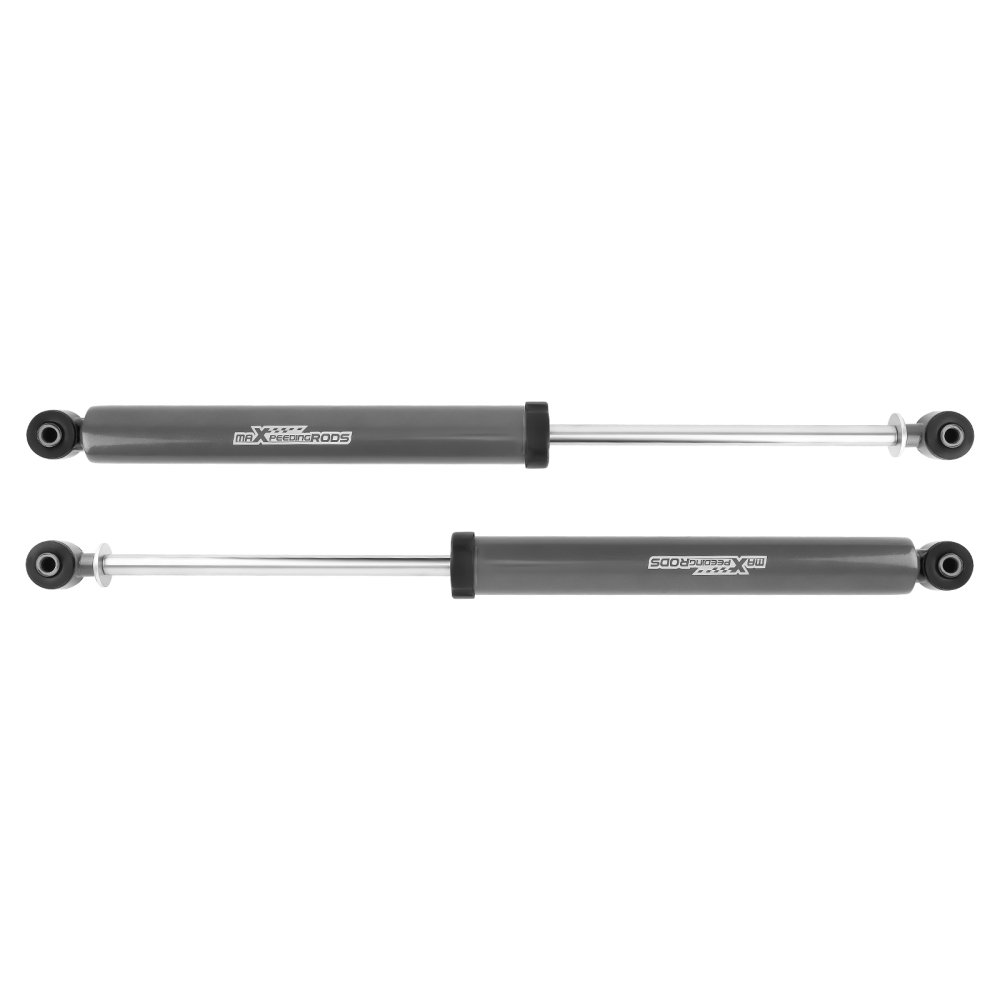

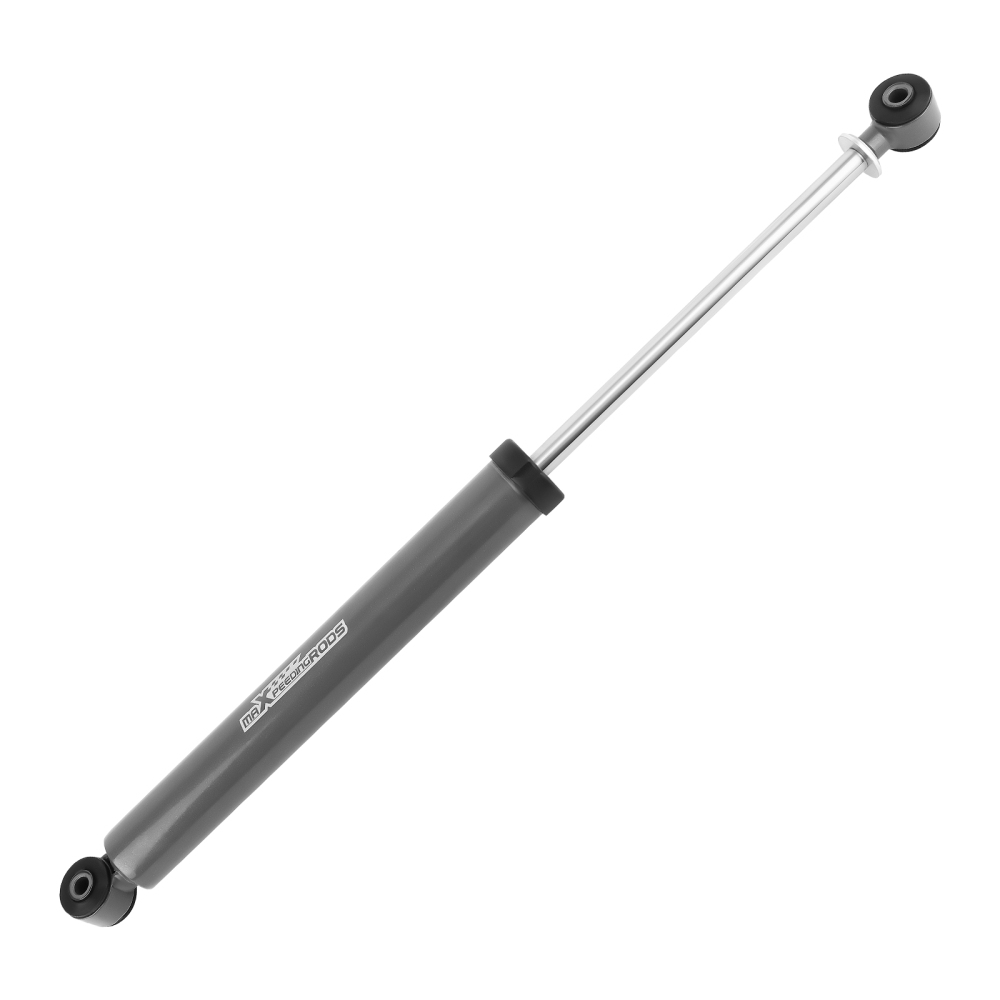

2x Rear shocks
2x rear 1" lift blocks
25.5mm/1"
4x U-bolts
Hardwares

Feature

Easy bolt-on installation
Maintains factory ride quality
Increased ground clearance
Levels the front with the rear of the vehicle
No need to disassemble your struts to install

轮胎尺寸

Recommended Tire Size: 35x12.50
Recommended Wheel Backspacing: Factory
