4x EN24 Connecting Rods compatible pour Mitsubishi Lancer Delica 4B12 2.4L engine 5.657

Application

Compatible pour Mitsubishi 4B12 2.4L engine，

Pin Type: Floating Pin Piston，Pin  diameter:21mm/0.827".
----
Compatible pour Mitsubishi Delica--2007-
Compatible pour Mitsubishi Lancer--2008-
Compatible pour Citroën C-Crosser--2008-
Compatible pour Peugeot 4007--2008-
Compatible pour Mitsubishi Lancer Sportback GTS--2009-
Compatible pour Mitsubishi Lancer GTS--2009-
Compatible pour Mitsubishi Outlander (Facelift Europe)--2009-
Compatible pour Mitsubishi Galant--2010-
Compatible pour Mitsubishi Lancer SE AWC--2012-
Compatible pour Mitsubishi Lancer GT Manual--2013-
Compatible pour Mitsubishi Lancer--2015-
Compatible pour Mitsubishi RVR--2018-
Compatible pour Mitsubishi Outlander PHEV (Techlift Europe and Asia)--2019-
Compatible pour Mitsubishi Outlander PHEV (Techlift North America)--2021-
Compatible pour Mitsubishi Eclipse Cross PHEV--2021-

Dimensions

Center to center length:143.7mm/5.657"
Big end diameter:51mm/2.008"
Small end diameter:21mm/0.827"
Big end width:21.8mm/0.858"
Small end width:21.8mm/0.858"

Caracteristiques

*Type: Forged 4340 aircraft chrome moly quality steel for racing

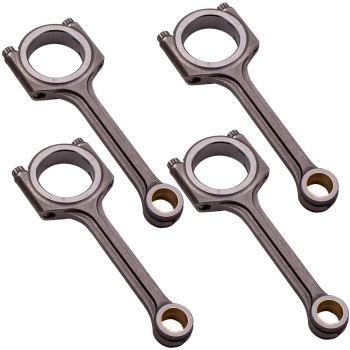

*H-beam Conrods Quantity: 4 Pieces as showing in picture
*Bolts: Including ARP 2000 3/8" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*10CM

ADVANTAGE

1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；
4. H-Beam design reduces weight without compromising strength；
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6.High precision CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .005mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.Use X-rayed, sonic tested；
11.Custom Service.

REMARQUE

*There are titanium-plated upgrade models；
*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
