combinés filetés suspension spring compatible pour BMW 5 Series E60 AWD XI 2003-2010 adj-heightkit d'abaissement

Introduction

MXR-B2 coil-overs are designed as entry-level for street use. It features height adjustable and adjustable camber plates (applicable for some vehicles), which offer you a lowered stance, and improved performance for your daily use vehicle.

Application

Compatible pour BMW 5 series (E60) 2004-2010 Sedan AWD
Model: 525xi,528i xDrive,528xi,530xi,535i xDrive,535xi
Note:
1. Will not fit models with air suspension.
2. The front damper knuckle insert diameter is 56.8mm.
Please verify the model and dimensions before purchasing to ensure compatibility.

Specification

Top mounts:pillow ball top mount front,standard rubber top mount rear
Damping adjustable: Not available
Camber adjustable: Not available
Spring rate Front: 10 kg/mm (560 lbs/in)
Spring rate Rear: 7 kg/mm (392 lbs/in)
Height adjustable: Yes, lowering 1-3 inches depending on the vehicle models
Shock type: Twin tube
Spring Preload advised: 7-10 mm
Color: Golden body with black spring

Package included

Package included：

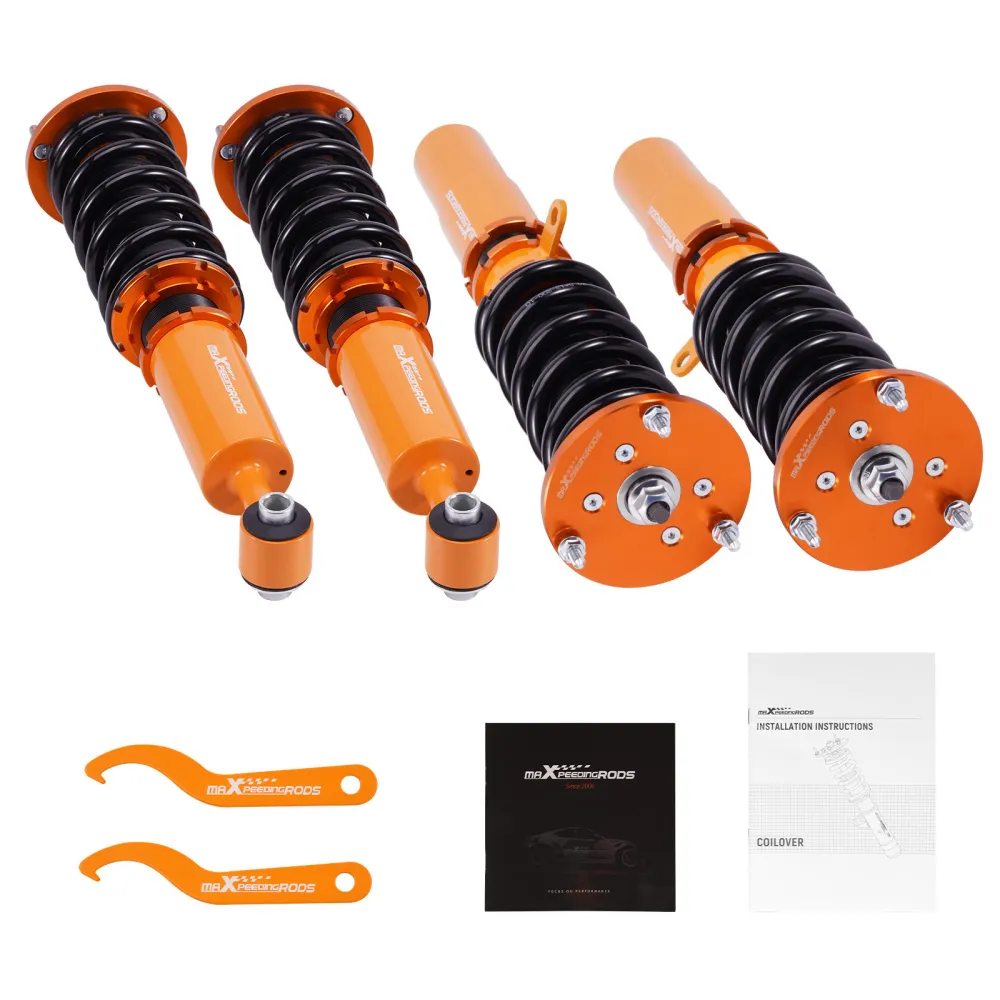

1 x Set of Coilover Spring Kit (2 Front + 2 Rear)
1 x Pair of wrenches for height adjustment

Dimension

Package Size: 70*50*20 cm
Weight：25800g

Feature

1. Lowered height adjustment from 1" - 3" (depends on vehicle models)which allows a lower center of gravity and also add a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)
4. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight
5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
6. High tensile spring--- 600,000 times continuously test to assure its high tensile strength.
7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
9. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts

Note

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
