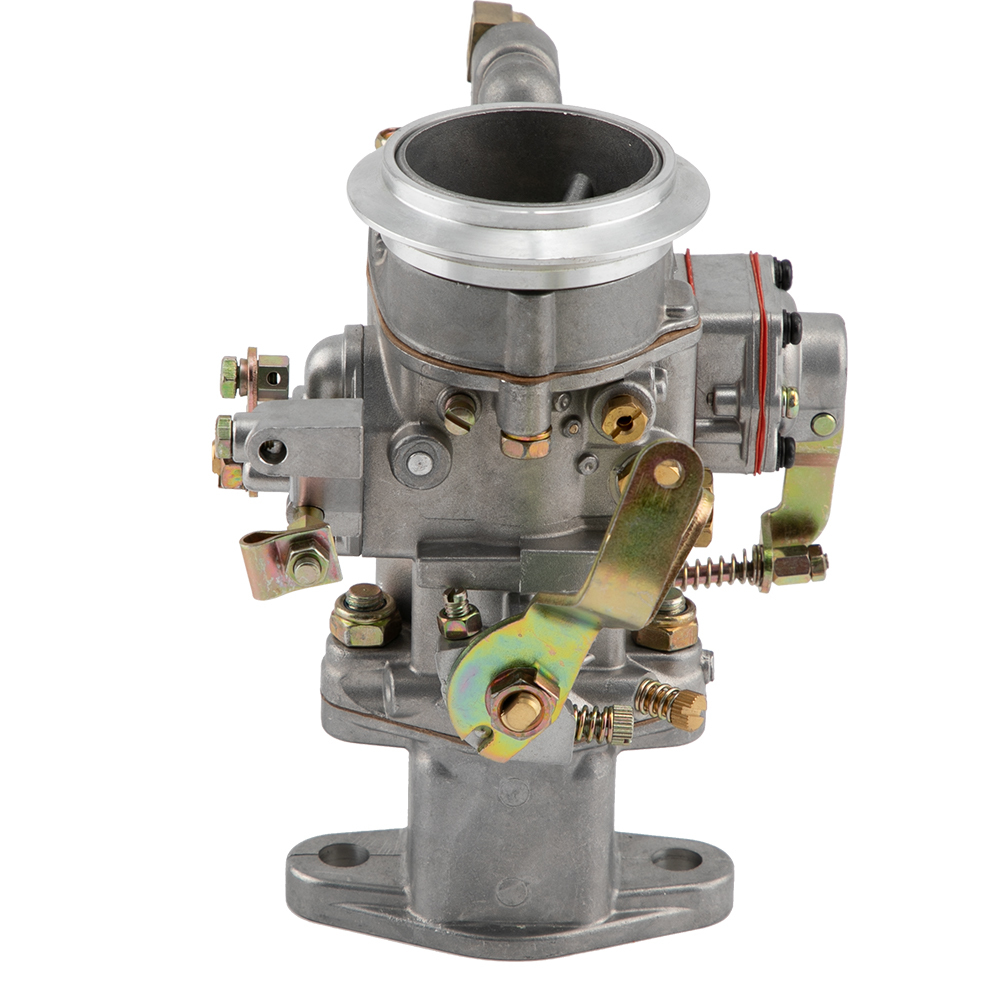

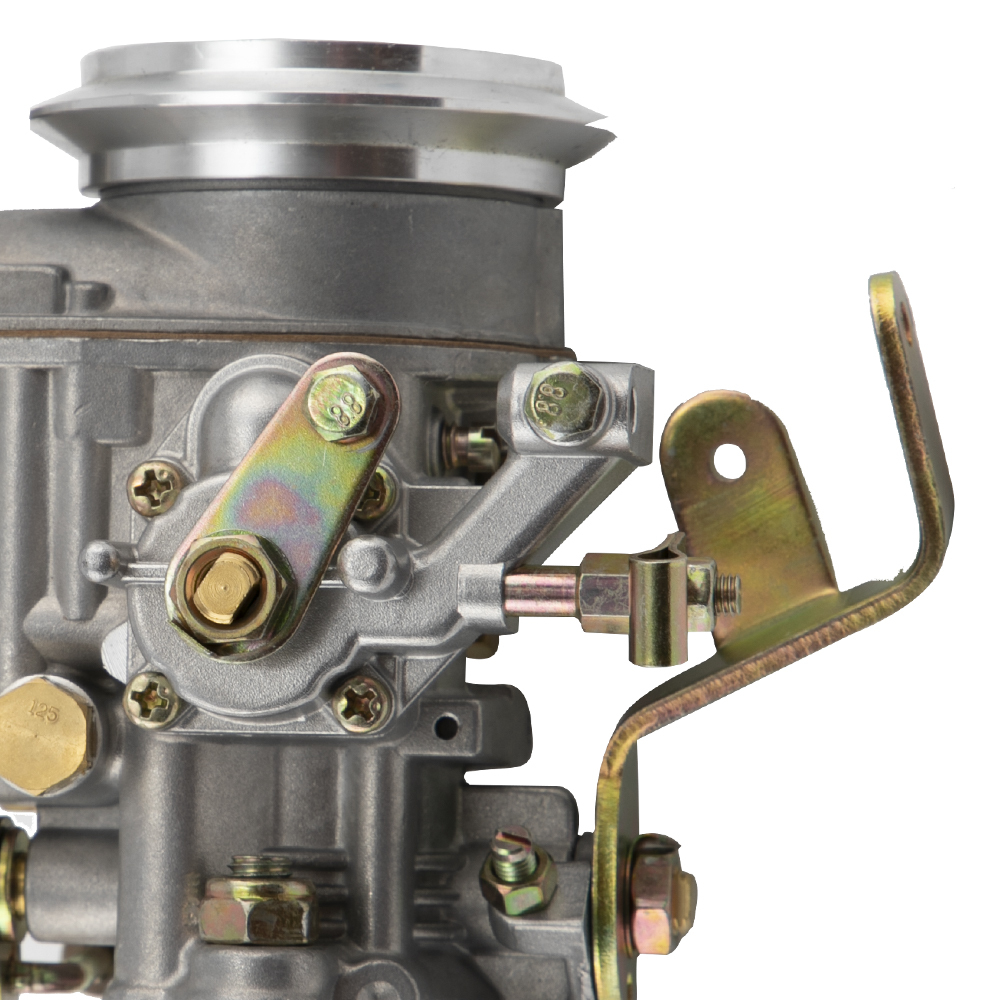

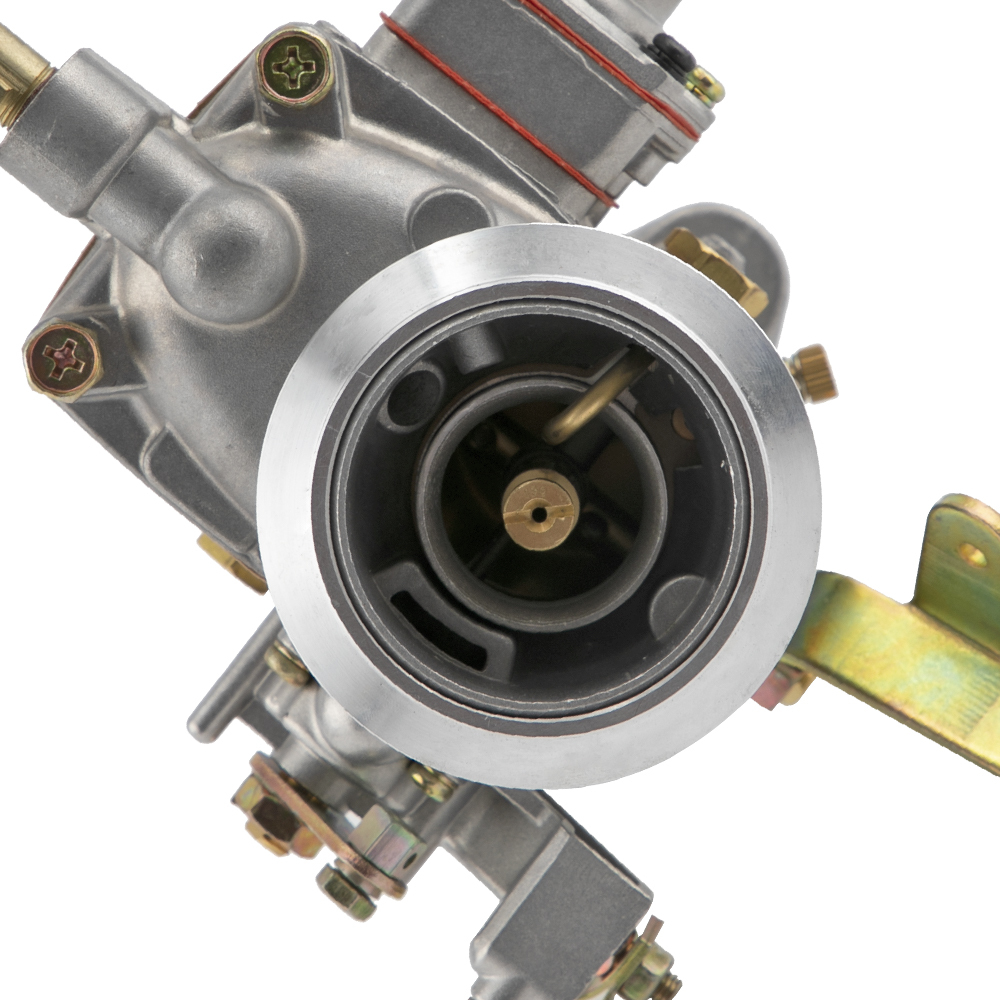

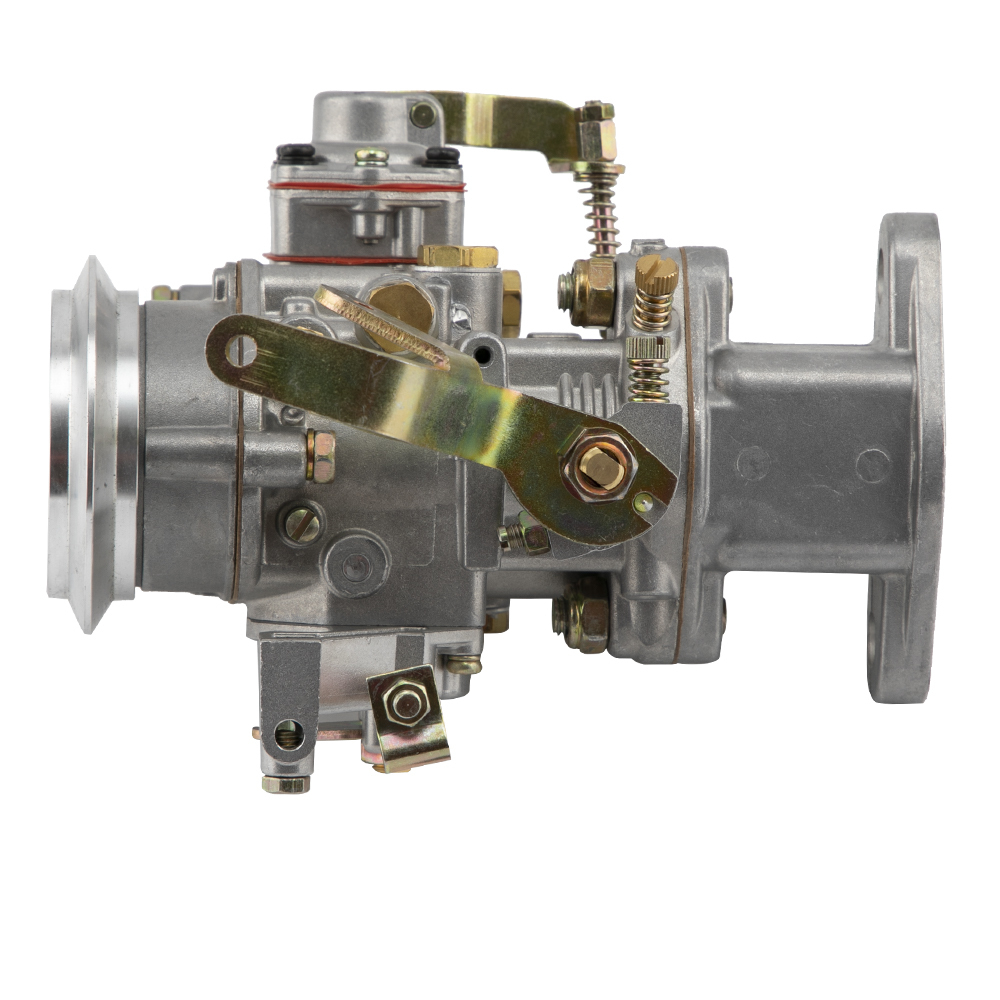

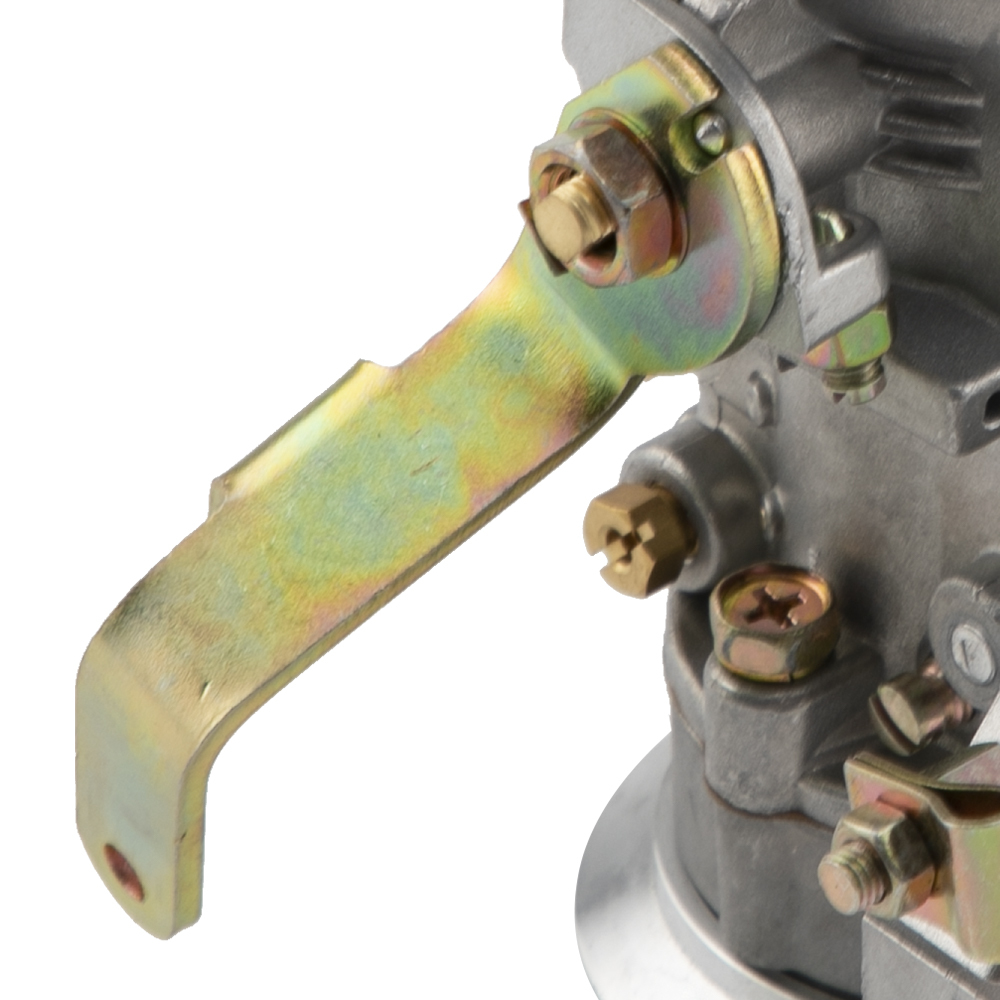

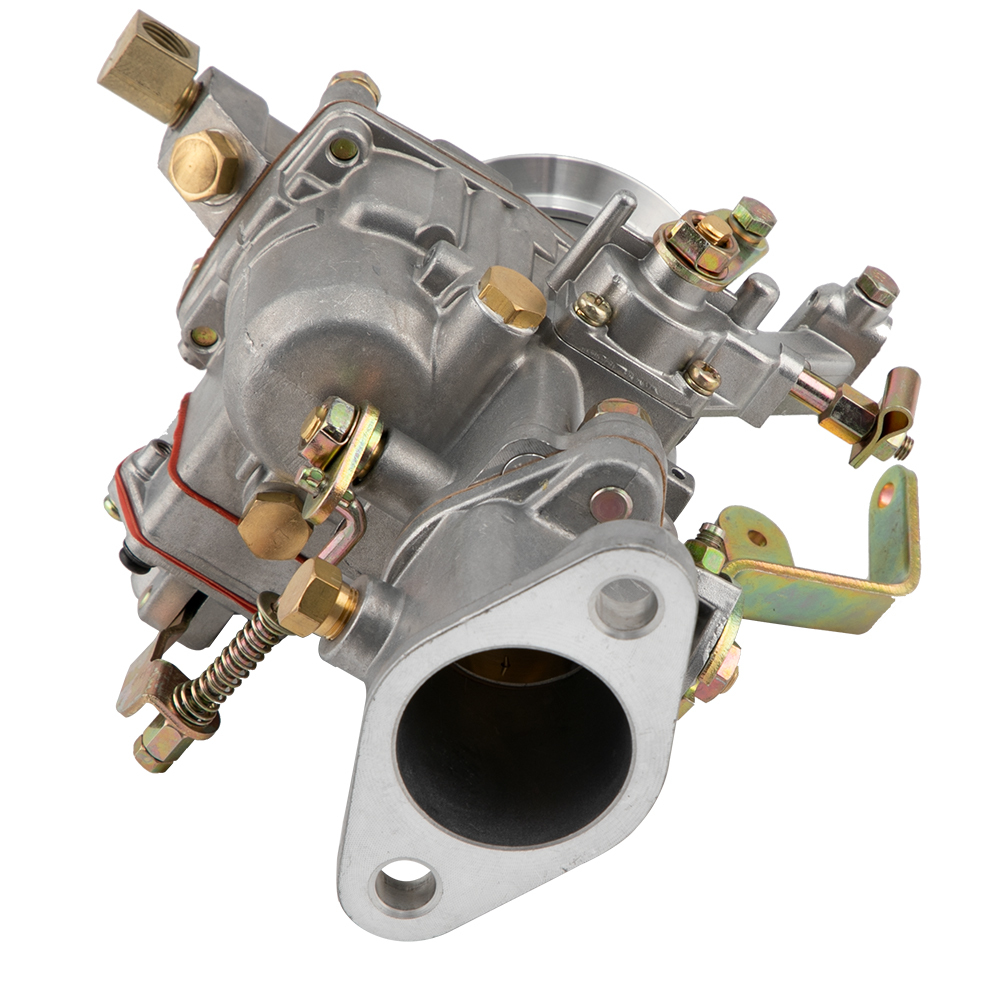

1 BBL Carburetor compatible pour Jeep Willys CJ3B CJ5 CJ6 4 cylinder engines 1770102 F-head

Introduction:

  A carburetor is a device to mix air and fuel for internal combustion engines in the proper ratio for combustion. The fuel and air mixture is too rich if it has an excess of fuel, while too lean if there is not enough. Therefore, to make sure the proper engine function and have a nice driving experience, a good quality carburetor is highly recommended.

NOTE:

Une impureté dans le carburant peut provoquer un encrassement du carburateur. Veuillez utiliser du carburant propre for que le carburateur fonctionne normalement. Nettoyez le circuit d'huile et le filtre à air de l'automobile avant d'installer le carburateur.

This carburetor fit F-head 4 cylinder engines in

Compatible pour Jeep 4.2L 258Cu Engine BBD 6 Cyl
Compatible pour Jeep Cherokee 1983
Compatible pour Jeep Cj5 1983
Compatible pour Jeep Cj7 1983-1986
Compatible pour Jeep Grand Wagoneer 1984-1986
Compatible pour Jeep J10 1983-1987
Compatible pour Jeep Scrambler 1983-1985
Compatible pour Jeep Wagoneer 1983
Compatible pour Jeep Wrangler 1987-1988
Compatible pour Jeep Wrangler Islander 1988
Compatible pour Jeep Wrangler Laredo 1987-1988
Compatible pour Jeep Wrangler S 1988
Compatible pour Jeep Wrangler Sahara 1988
Compatible pour Jeep Wrangler Sport 1987-1988

OE/Part number:

923808, 17701.02

Specification:

Materia:Aluminum Alloy
Choke Type:Manual choke
Barrel Count:1
Mounting Flange Type: Bolt On
Fuel Type: Gasoline
Bolt Hole Spacing Length: 68mm (Center To Center)
Intake Side Diameter:35mm
Air Filter Side Inner Diameter:52.4mm
Air Filter Side Outer Diameter:57.5mm
Venturi Diameter:26mm

Note:

*The oil channels of carburetors will be blocked without cleaning.Please clean up the oil channels and air filters as well as use the clean fuel before installing the carburetors.
*Professional installation recommended/We recommend that this be installed by a qualified mechanic with experience doing this type of work.  (No Instruction Included)
